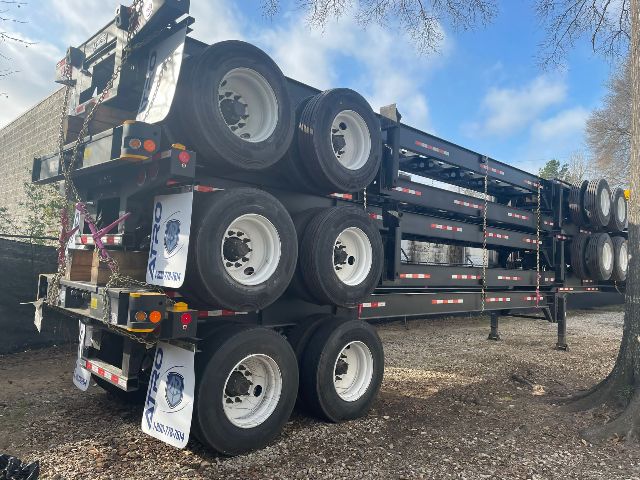

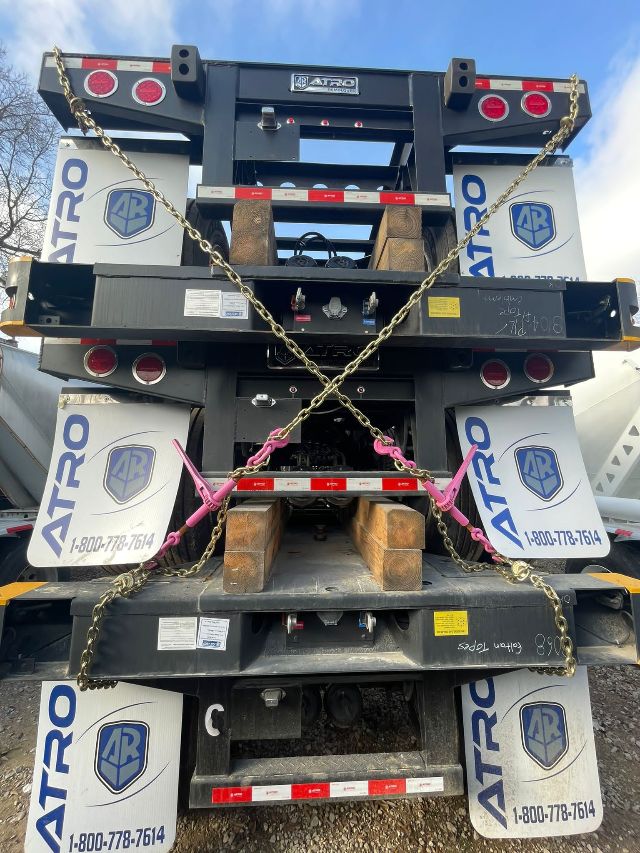

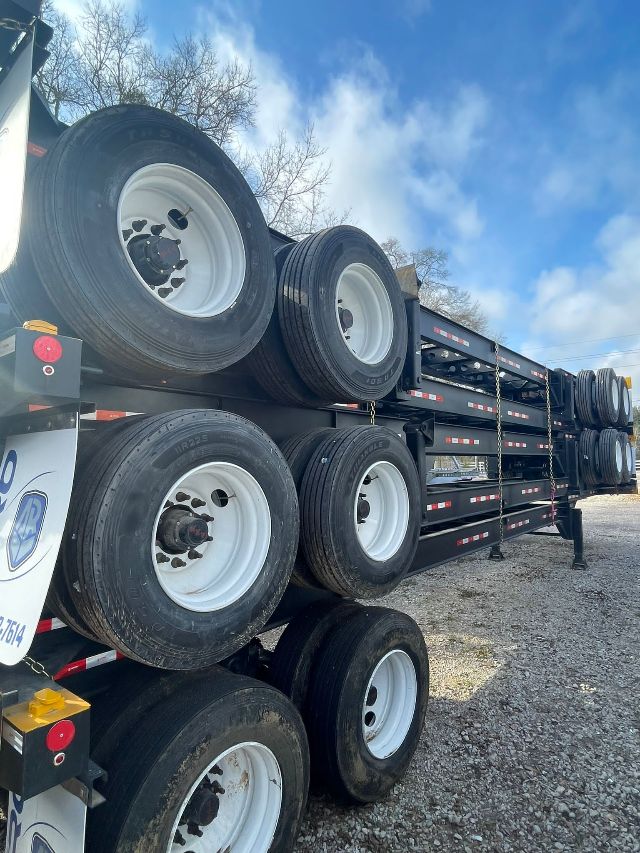

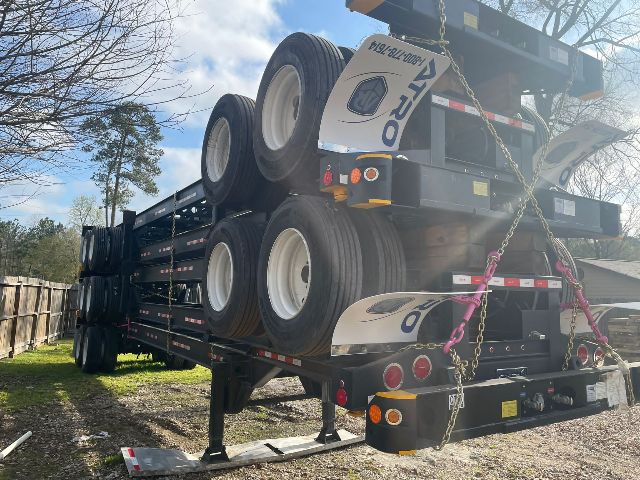

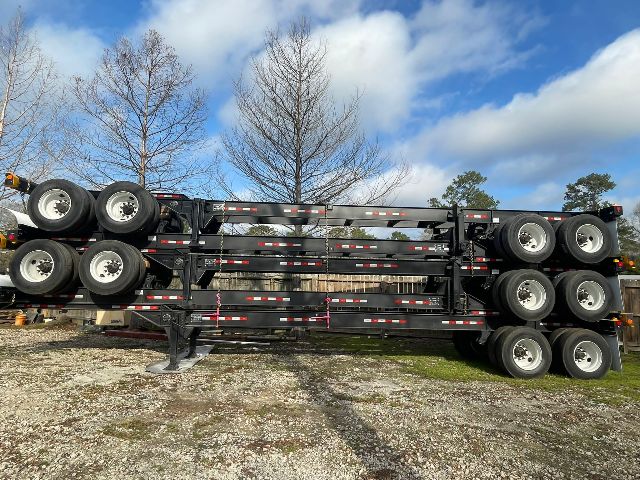

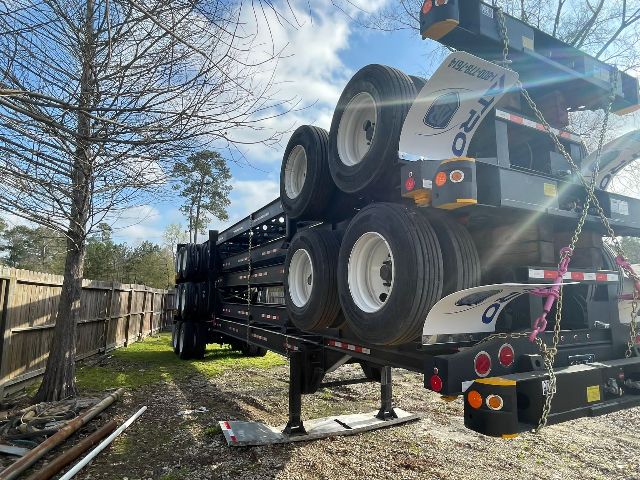

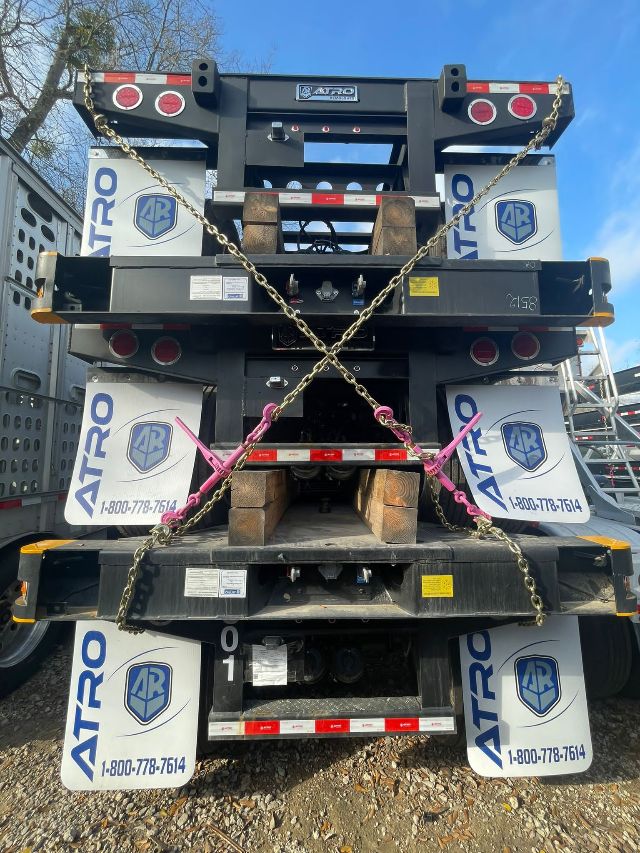

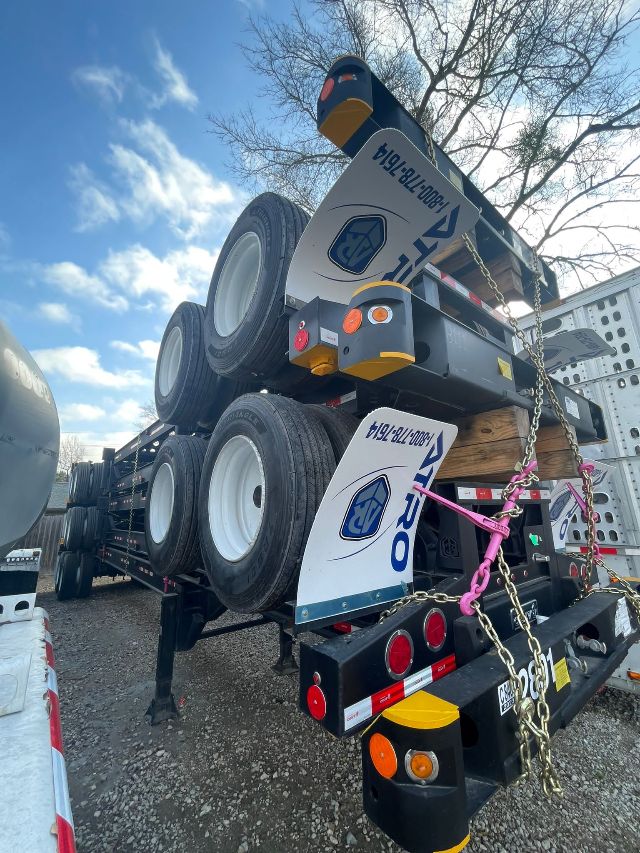

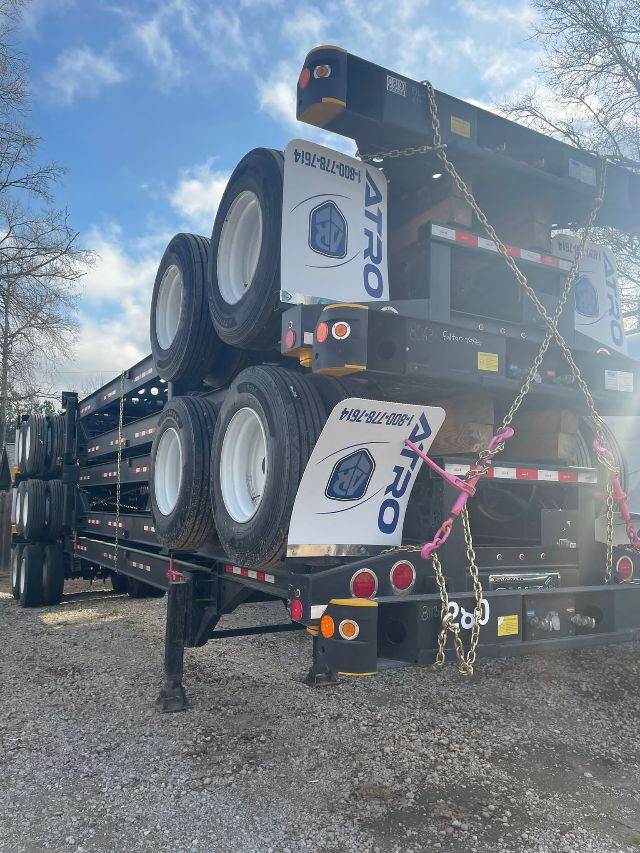

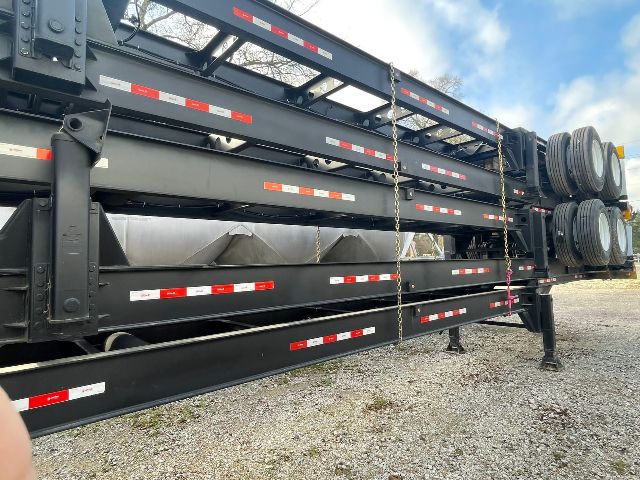

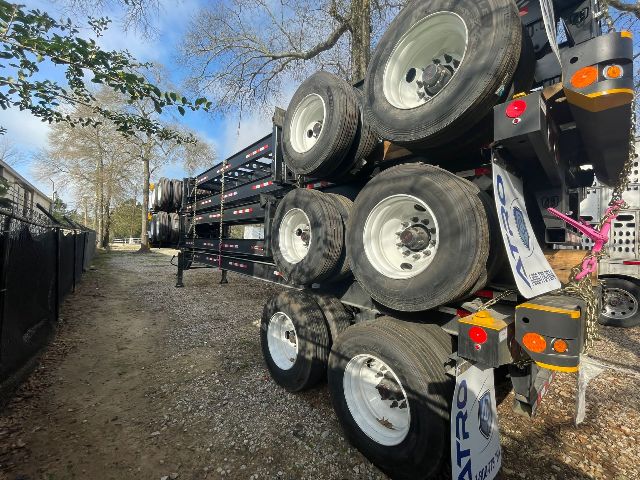

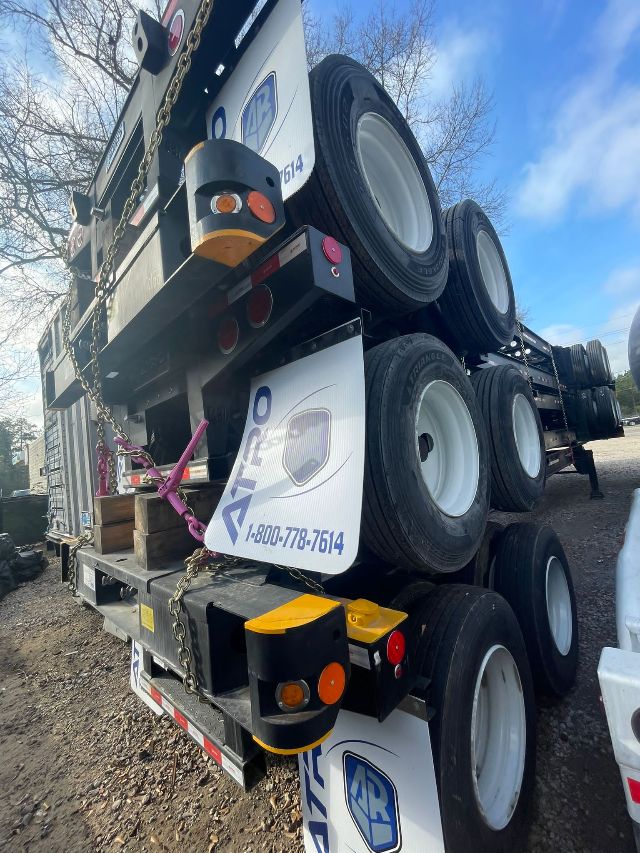

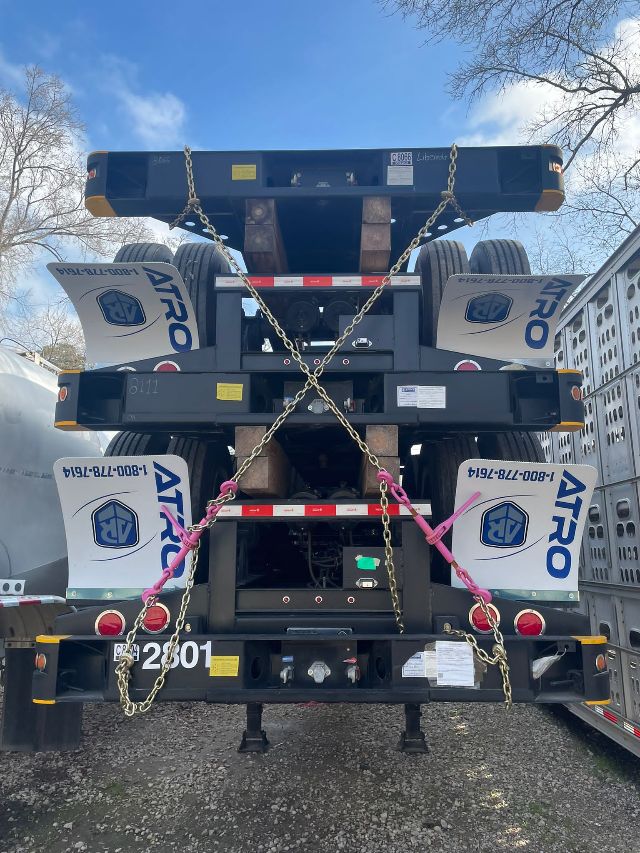

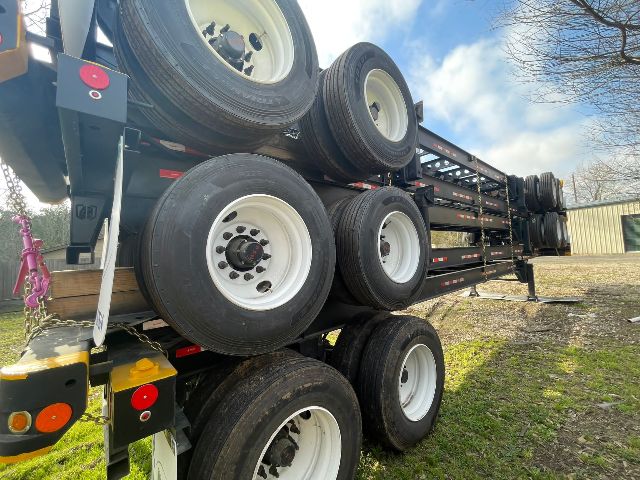

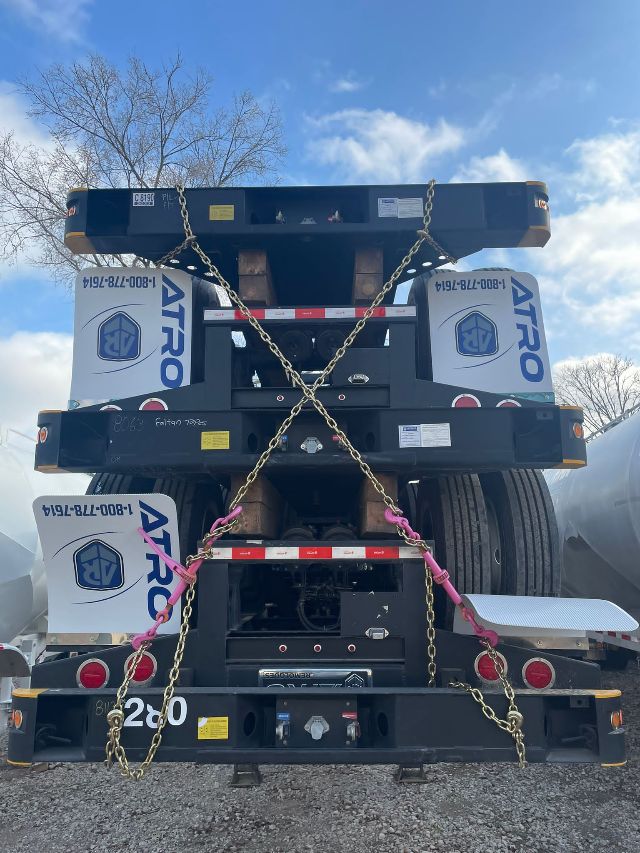

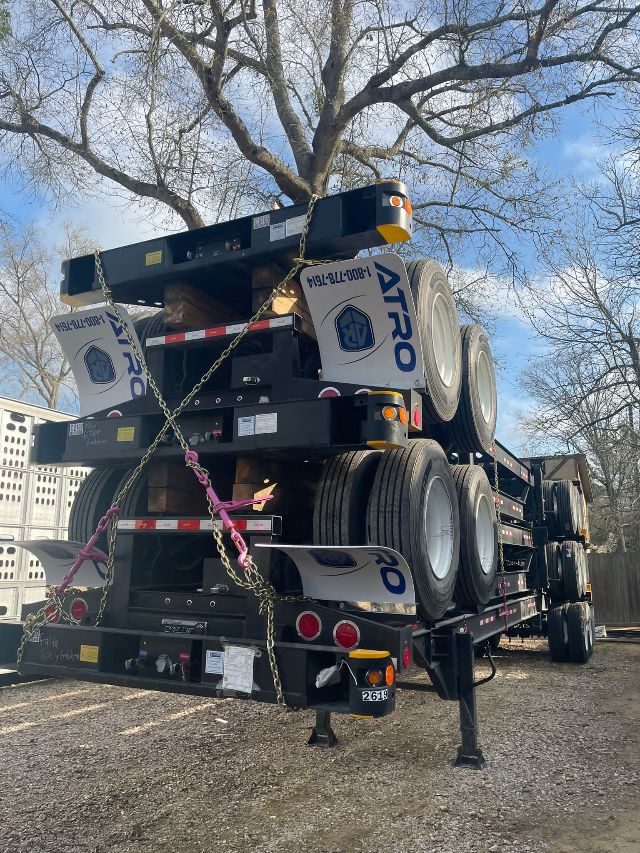

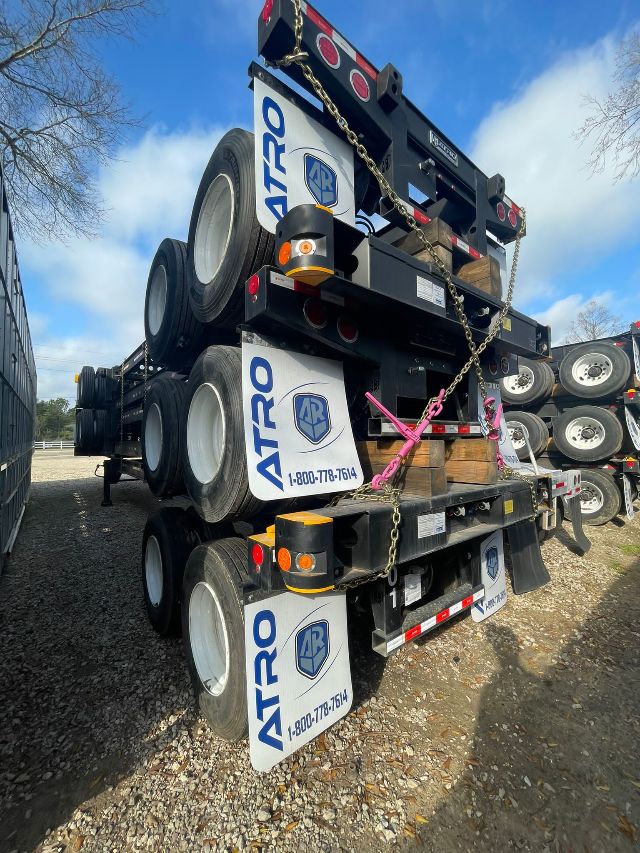

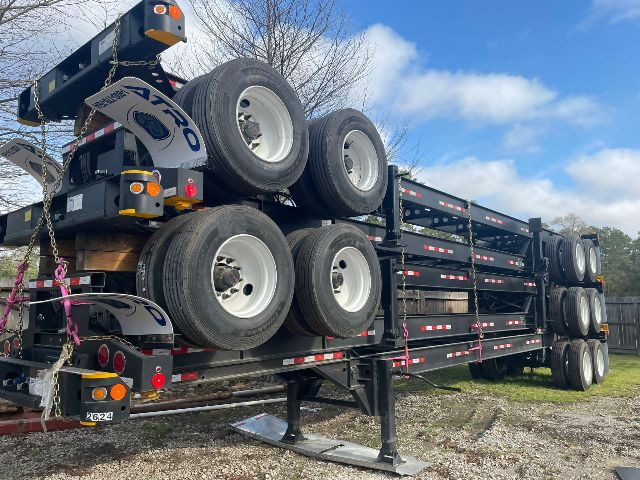

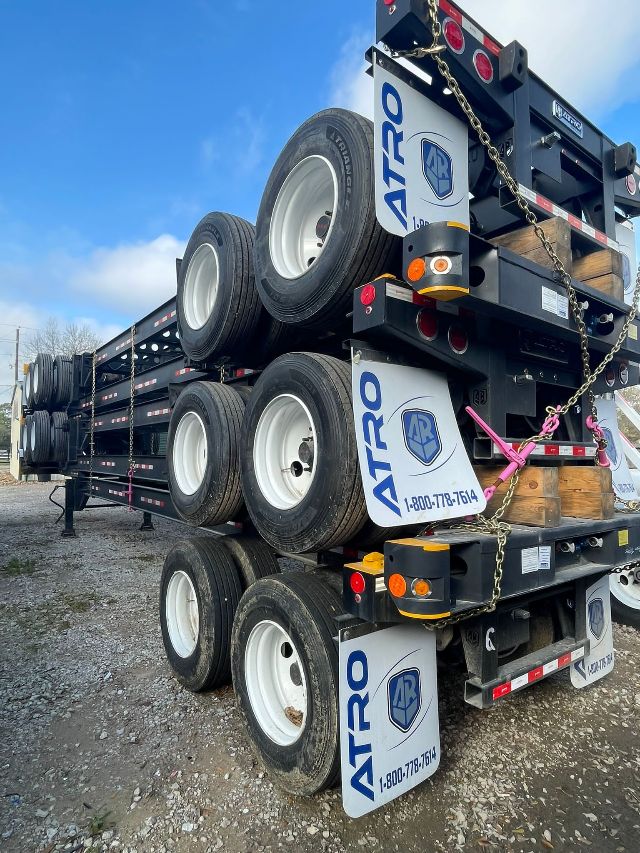

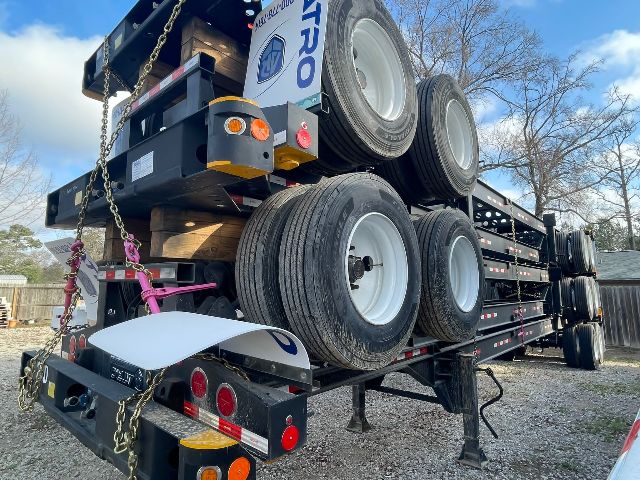

2023 ATRO 40' INERMODAL CONTAINER CHASSIS

2023 "NEW NEVER USED" ATRO STANDARD 40’ INERMODAL CONTAINER CHASSIS Overall Length: 40 ft. 6’’

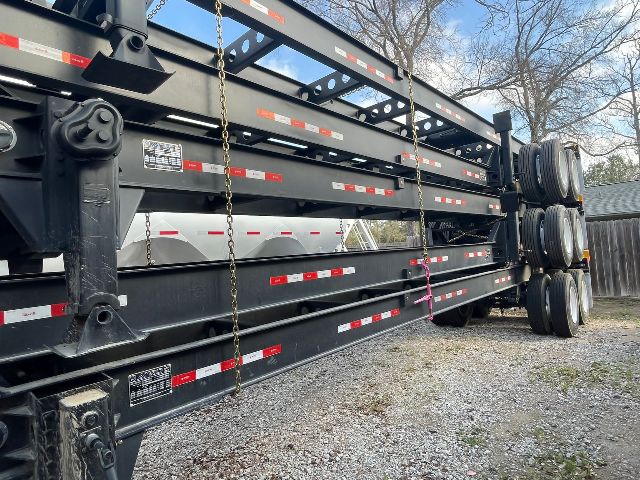

Conspicuity: Meets DOT requirements Main Beams: Wide flange I-Beam 12 in deep, 19 lb/ft, hot rolled steel, ASTM A572-50
 Upper Coupler Assembly: Pick up plate is 5/16 in. thick Front Bolster: Fabricated 7” x 9” channel

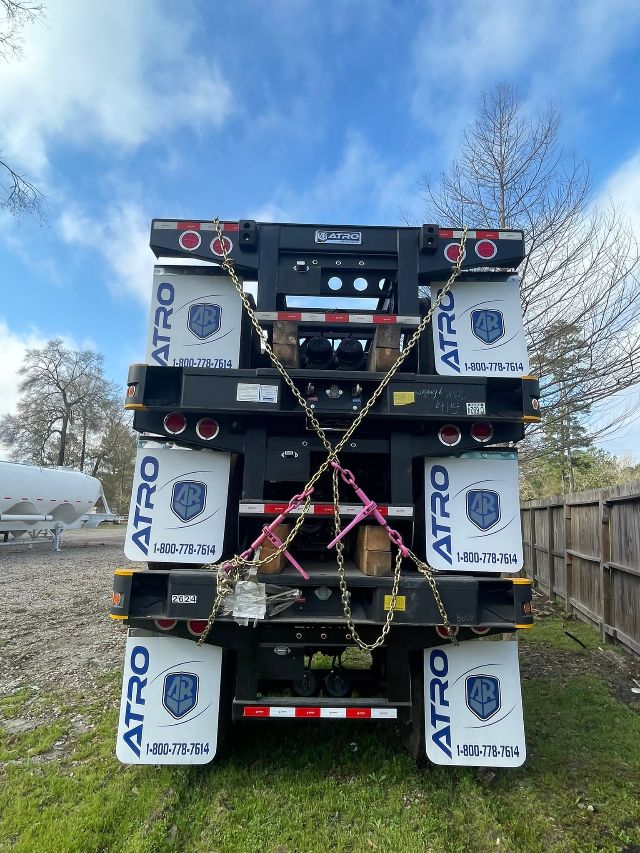

 Rear Bolster: Fabricated 7 1/4” x 6 7/8” channel with eyebrow light protectors
ICC Bumper: 4 in x 4 in x 3/16 in Tube step bumper (No rubber dock bumpers)
 Twist Lock & Slide Pins: Meets ISO standards and requirements
 Overall Chassis Width, Length: 96” x 40’ 6” (48 in rear height)
 Kingpin Location: 30 1/2 in from the rear face of the front bolster
 Mud Flaps: Plastic Atro Brand ELECTRICAL SYSTEM 12 volts, 7-way split pin receptacle plug; modular wiring harness
Light Attachment, Type: Flange mounted, LED
LANDING GEAR
GOOSENECK BEAMS 5 in deep I-Beam, fabricated with 1/2 in x 4 in flanges and 1/4 in x 4 in web LANDING GEAR: Two-speed AAR approved, square leg. 55,000 lb lift capacity, 160,000 static load capacity
 Landing Gear Foot Group: 10 in. by 10 in. low profile sandshoe
 Crank Handle Location: Road side handle
 BRAKES
Drum: Outboard mounted
Brake Lining Options, System Type: Standard, 2S1M
 WHEELS
Rims: 8 1/4 x 22.5 hub piloted tubeless, white
 Tires: 11R 22.5
Hub Type, Material: Hub piloted, steel
 AXLES
Axle Quantity: 2 Axles
Axle Centers: 49 in
Tandem Location: 54 in
 FINISH
Metal Preparation: Clean, dry steel and NACE No. 3 /SSPC-SP-6 “Commercial Blast Cleaning”
 Primer: 70% Zinc Rich Primer
Topcoat: Urethane
 Color: Black SUSPENSION Suspension Type: Spring-ride Springs: Three leaf
