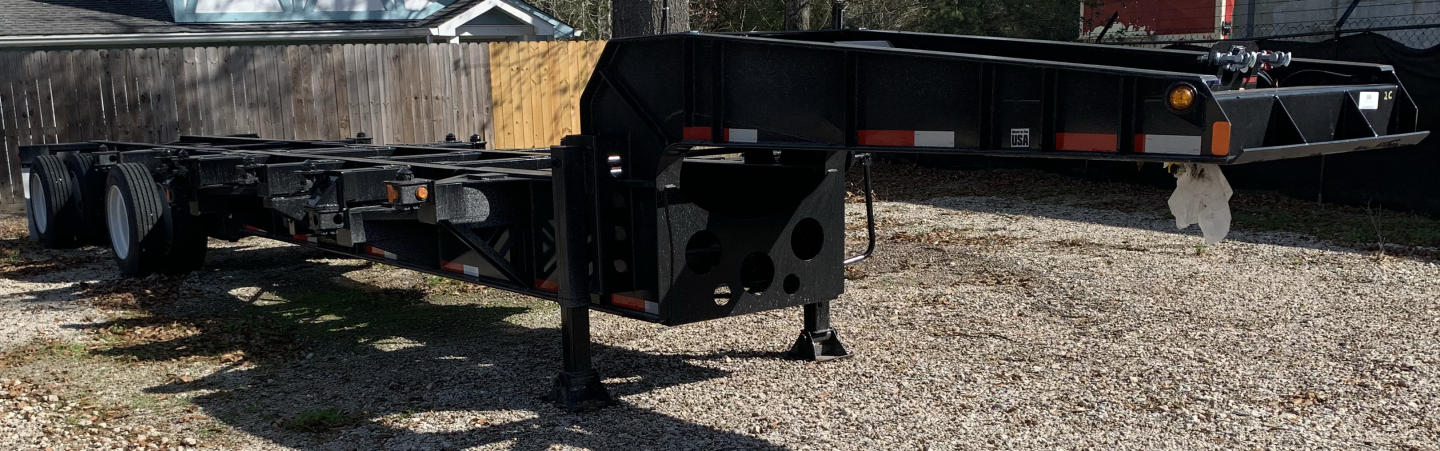

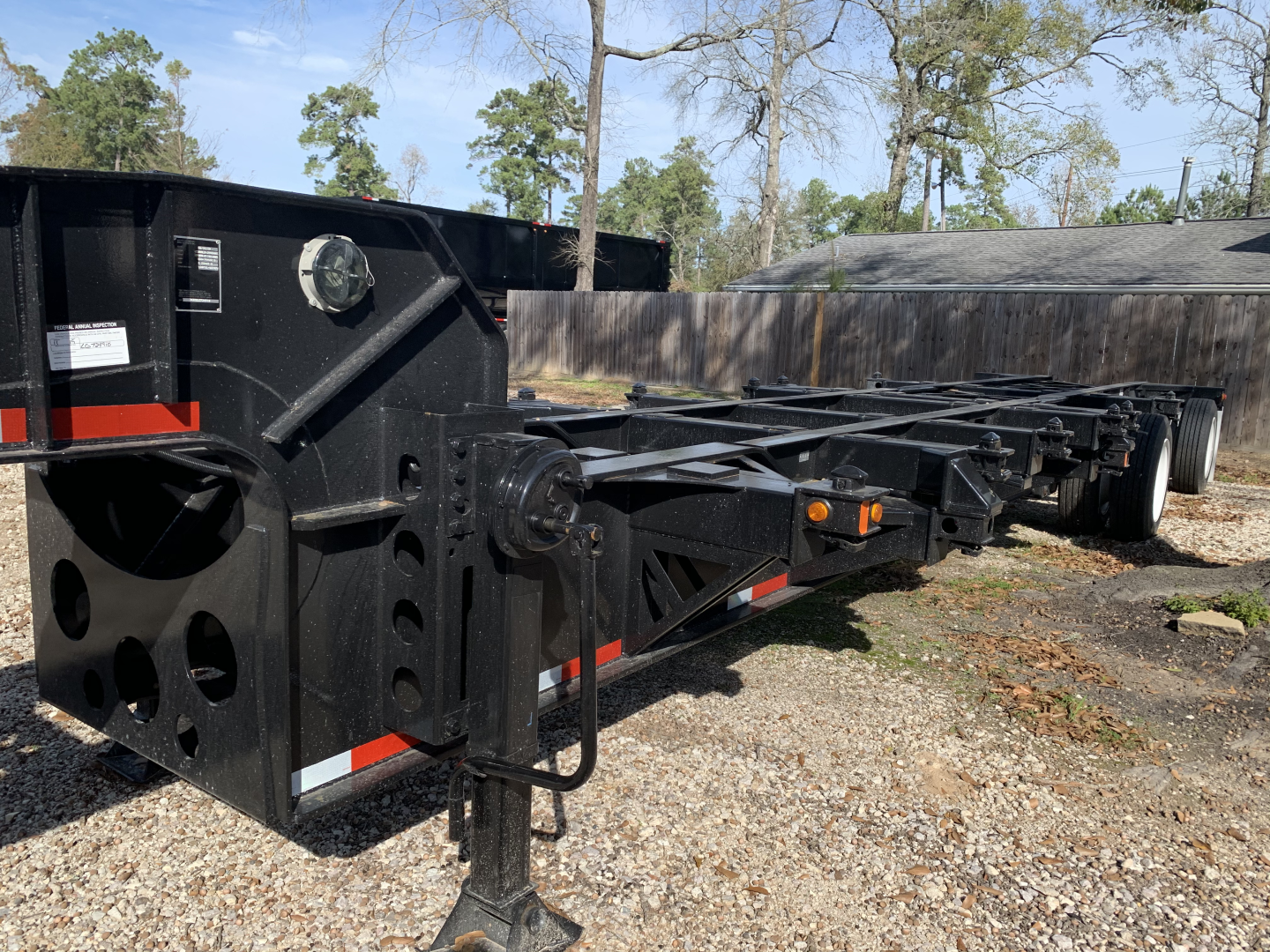

2020 Pro-Haul 43' SAND CHASSIS

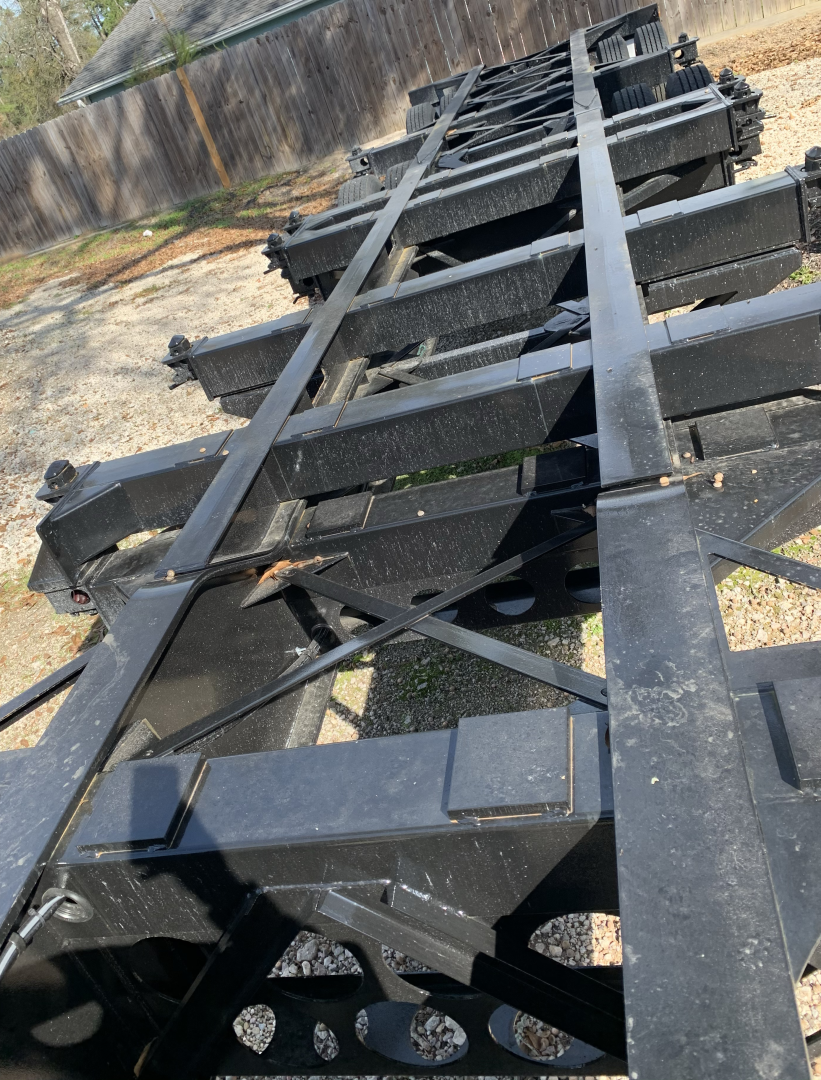

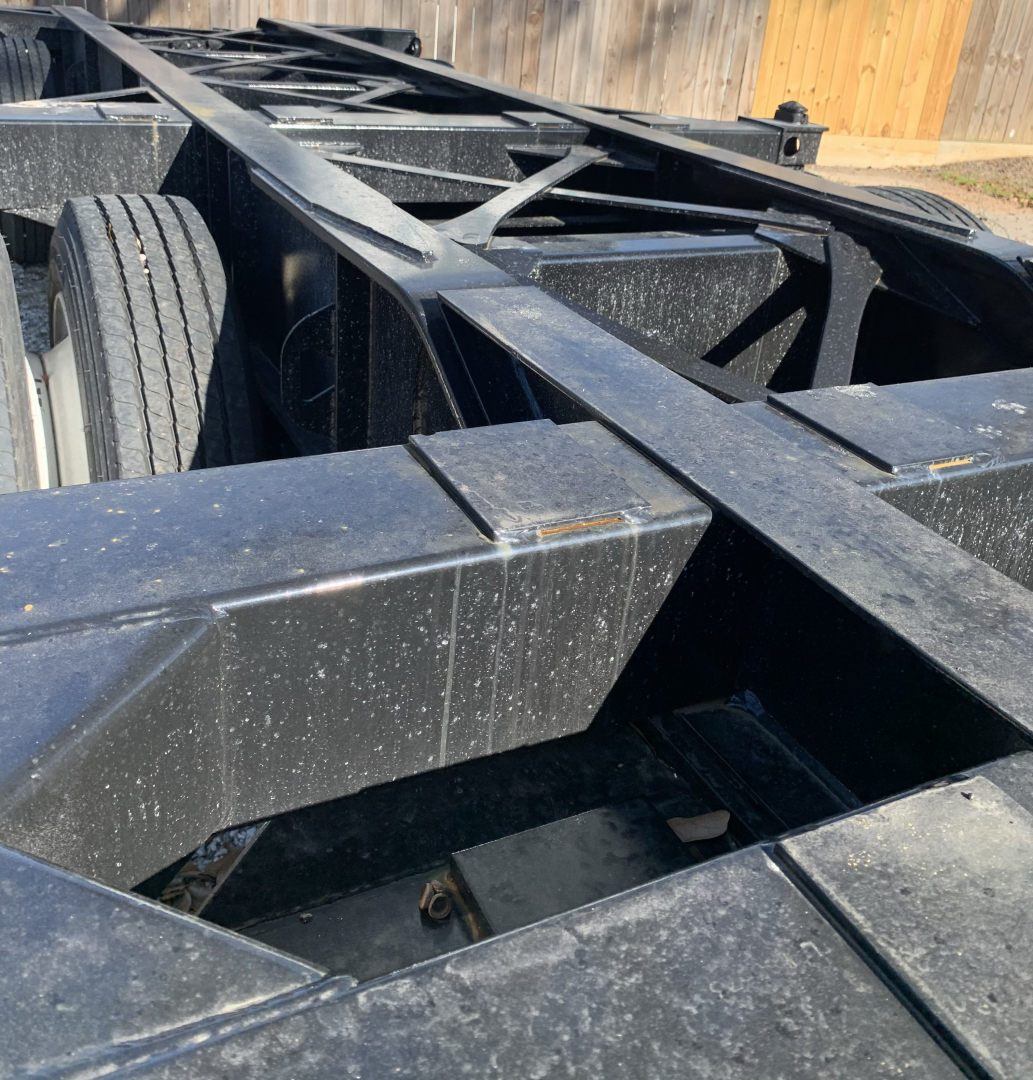

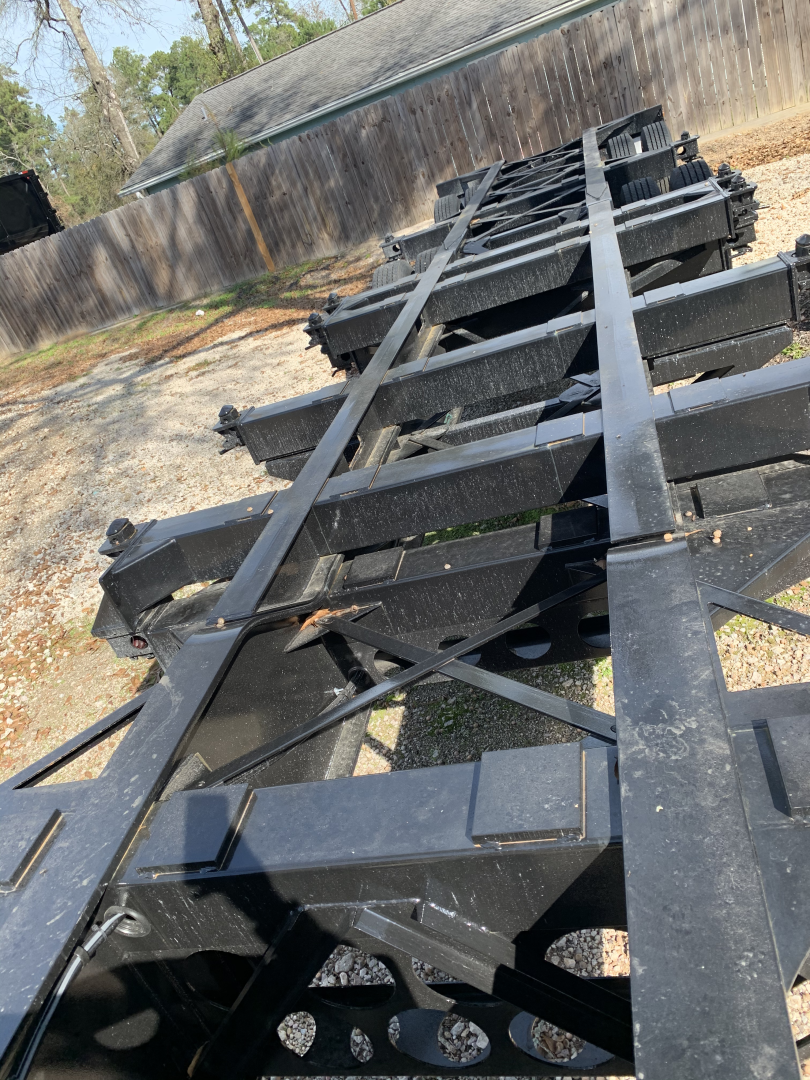

2020 PRO-HAUL 43' SAND CHASSIS TRAILER OVERALL LENGTH : 43' DESIGNED FOR REPEATED USE IN TRANSPORTATION OF FRAC SAND AND ISO 20' TANKS MEETS DOT REQUIREMENTS, GVWR: 65,000 LB TARE WEIGHT: 12,500 LB 8' OR 10' STANDARD BIN CONFIGURATION 11,200 LB 127" TALL 10' BIN OR 20' TANK CONFIGURATION FRAME BOGIE TYPE: WIDESPREAD AXLE BOGIE (2-AXLE) WITH 25,000 LB AXLES OVERALL FRAME WIDTH: 96" OVER BOLSTER MAXIMUM REAR HEIGHT: 41 1/2" KING PIN LOCATION: 18" FROM THE FRONT OF CHASSIS CROSS MEMBER: FABRICATED CHANNEL CROSS MEMBER WITH TRIANGLE GUSSET, A572GR50 CROSS MEMBER THICKNESS: 3/16” L/G SUPPORT BRACKET: 1/4" BOX TYPE BRACKET REAR GUSSET SPEC: 3/16" BOLSTER SPEC: 7" HEIGHT X 7" DEEP BOLSTER MATERIAL: 3/16” X 7" SQUARE TUBING (A572GR50) BOLSTER LOCKING DEVICE: TWISTLOCK LICENSE PLATE BRACKET: STANDARD INSTALL LOCATION MUD FLAPS: 24"X30" WHITE FACTORY FURNISHED MUD FLAPS MOUNTED ON VERTICAL STEEL FLANGE WITH A HORIZONTAL MEMBER REAR UNDER RIDE BUMPER: WELD-ON VERTICAL STEEL FLANGE WITH HORIZONTAL MEMBER HORIZONTAL MEMBER: 4” C-CHANNEL HORIZONTAL STEP GUARD FINANCING IS AVAILABLE AS WELL AS LEASE TO OWN. WE WORK WITH ALL TYPES OF CREDIT AND HAVE FINANCE PROGRAMS TO FIT EVERY SITUATION.We make it easy and affordable for you to finance your next truck or trailer fast financing !! Call DAN JONES (432) 789-1183 TODAY !! Hablamos español llámenos hoy para iniciar el proceso para obtener su crédito. Aquí aceptamos todos los tipos de crédito.
