2027 Conquest 130BBL (5,460 gaL)VACUUM STEEL TANK

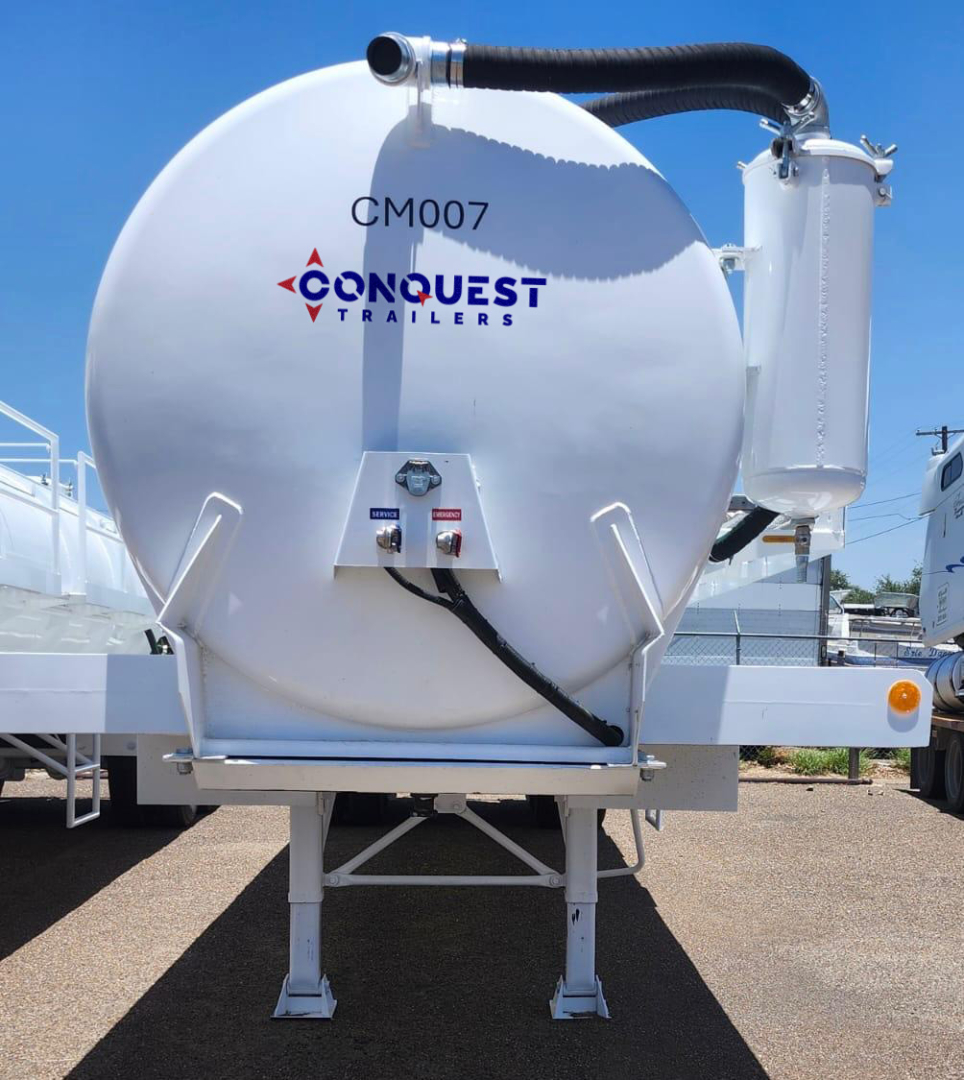

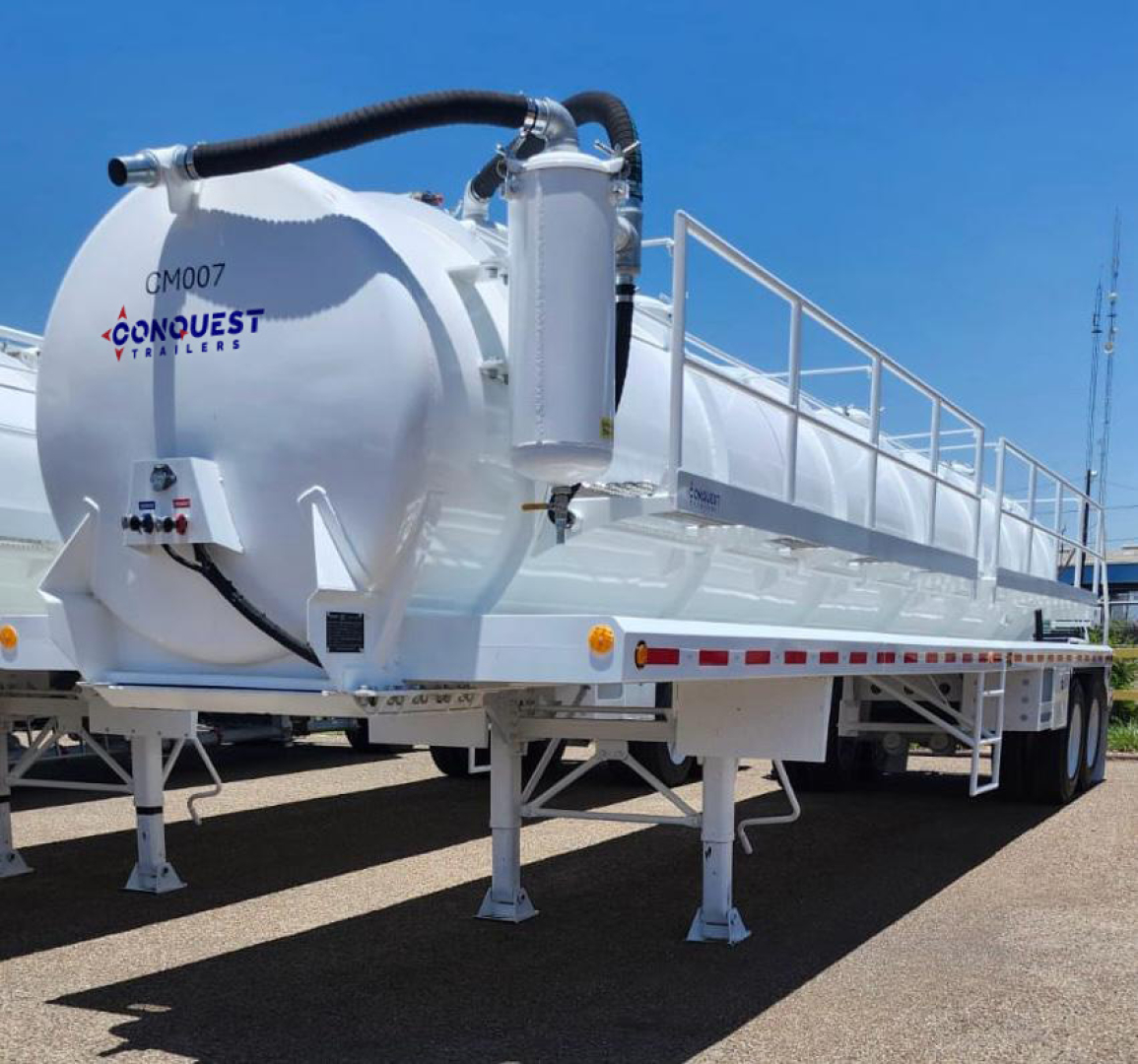

2027 CONQUEST 130BBL (5,460 gaL)VACUUM STEEL TANK TRAILER Our updated vacuum tank trailer design incorporates several structural improvements aimed at enhancing durability, stability, and overall operational efficiency. A front reinforcement has been added to increase rigidity between the flat bar and the main body, providing improved structural support during heavy-duty operation. Additionally, the redesigned frame section now extends fully to the top plate. This modification reduces operational resistance, decreases load impact on the fifth wheel, and minimizes unwanted vibration transmitted through the trailer structure, effectively reducing overall stress on the system. The flush-mounted body configuration also helps prevent excessive load transfer toward the top plate, contributing to improved structural integrity and enhanced long-term performance. Transportation of oilfield fluids such as water, mud, oil field waste. Non-Coded. Capacity: 130 BBL (5,460 gal.) + 1% Expansion. Overall Length: 42 ft. Height: 9 ft. 6 in. Width: 102 in. Material: A-36 Carbon Steel. UPPER COUPLER: Adjustable 3/8 in plate with Holland Kingpin 2". DESIGN PRESSURE: 15 PSI, Tested At 23 PSI. COMPARTMENTS: Single COMPOSITION: Body Carbon Steel A-36 ¼” gauge. Chassis: 1/4 plate chassis designed for high strength. Frame: Full Length 3/16 in. A-36 Both sides. BAFFLES: 3 (1/4”) steel plate. FENDERS: 40 ft length steel GA 12. STIFFENERS: Eight (8) rolled of 3/8 in. SIGHT GLASS: 2”. WELDS: Inside and out, with mig welding. AXLES: 2 (30,000 lbs.) each, 102 in. wide, 77.5 in. track TP type with automatic slack adjuster. SUSPENSION: 2 (30,000 lbs each, air ride, Hendrickson) HT-300. BRAKES: Air brakes with two boosters. FMVSS-121, ABS 4S/2M Bendix anti-lock brake system. LANDING GEAR: 2 Speed Crank Heavy Duty (JOST). ACCESS LADDER: One (1) stairway in the rear with thru-tread steps. WALKWAY: Driver's aluminum side tank length through-treaded walkway with toe-kicks and handrails. TOOLBOX: (1) 18” X 22” X 30” located at driver’s side and Basket for cones. BUMPER: Heavy duty (tubing 4x3x.375), per DOT requirements. MANWAYS 4 on top 1 in rear OUTLET: Two (2) 4 in. butterfly valves at rear. SHUT OFF: ball type primary in front manway, ball type secondary 14 gal on driver’s side front with drain. RELIEF VALVES: 1 1/2” vacuum and 1 ½” pressure. V/P GAUGE: +30, -30 vacuum / pressure. OUTSIDE PAINT: Polyurethane with Hempel etching primer, previous sand blast. COATING INSIDE: 204 high build epoxy. LIGHTS: Sealed harness and GROTE LED lights per DOT. Two rear work lights. WHEELS: 10 holes, 8000 lb, 8.25 x 24.5 (8 pcs). TIRES: 11R 24.5 all-terrain FINANCING IS AVAILABLE AS WELL AS LEASE TO OWN. WE WORK WITH ALL TYPES OF CREDIT AND HAVE FINANCE PROGRAMS TO FIT EVERY SITUATION.We make it easy and affordable for you to finance your next truck or trailer fast financing !! Call DAN JONES (432) 789-1183 TODAY !! Hablamos español llámenos hoy para iniciar el proceso para obtener su crédito. Aquí aceptamos todos los tipos de crédito.
