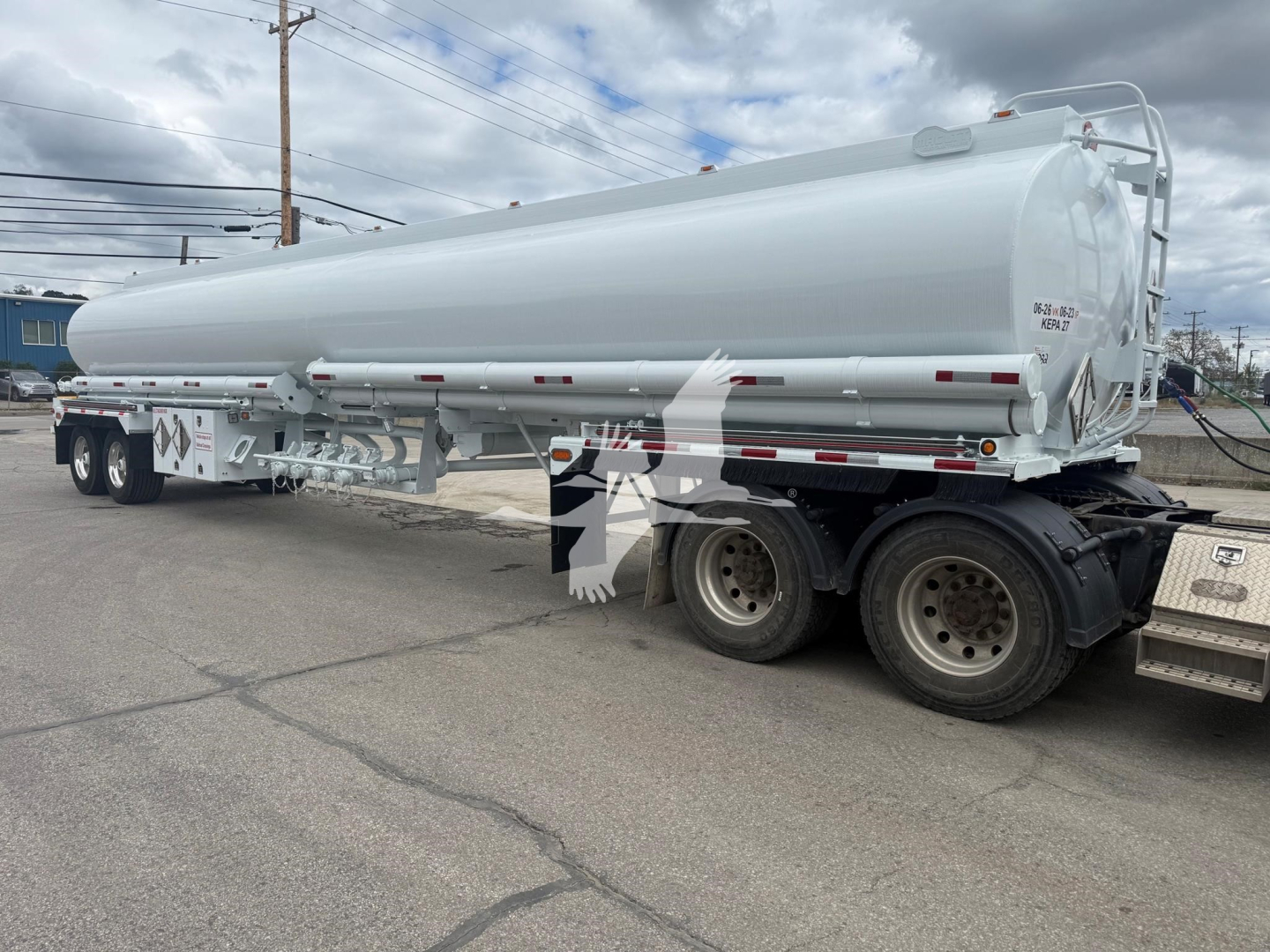

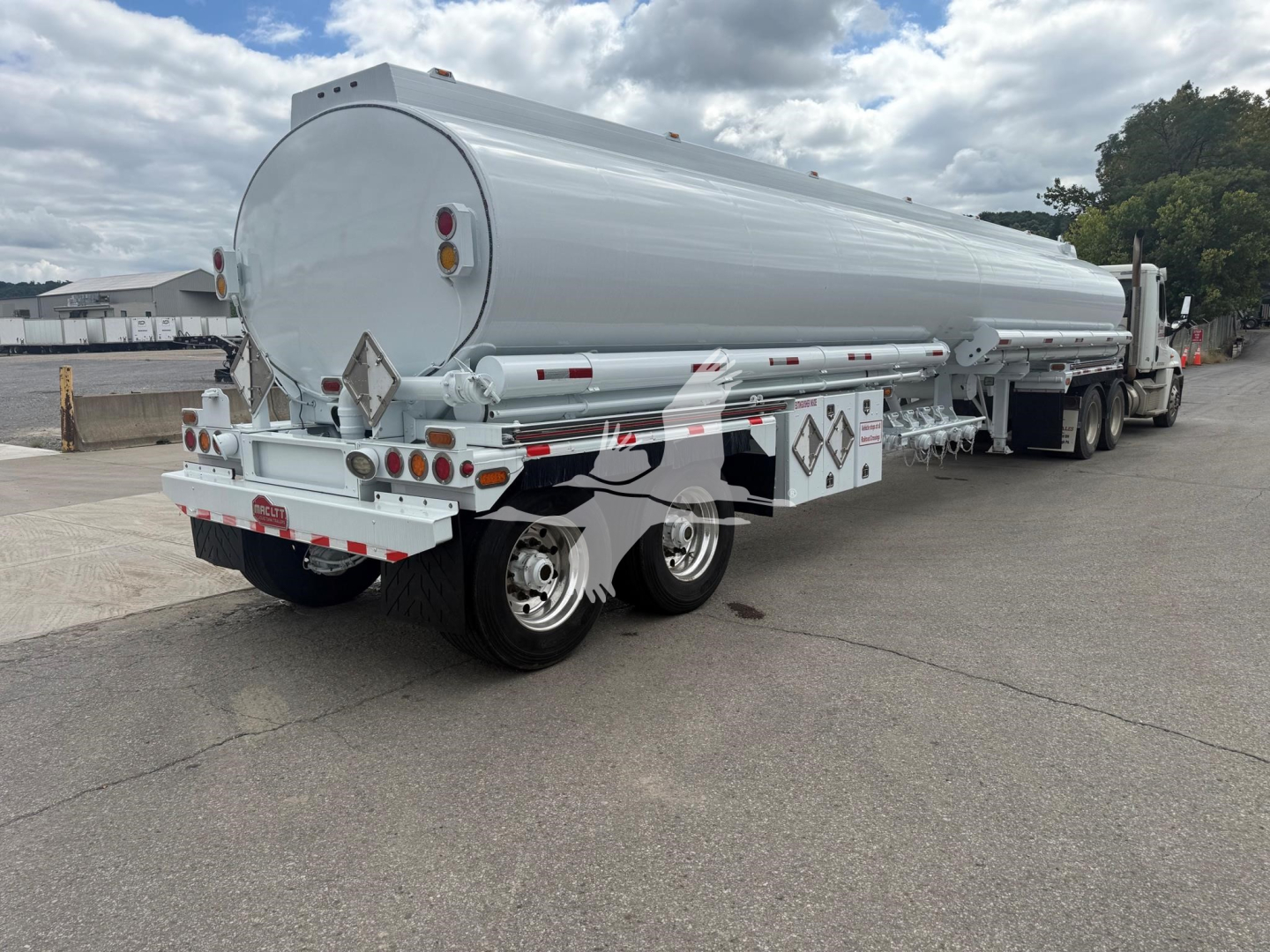

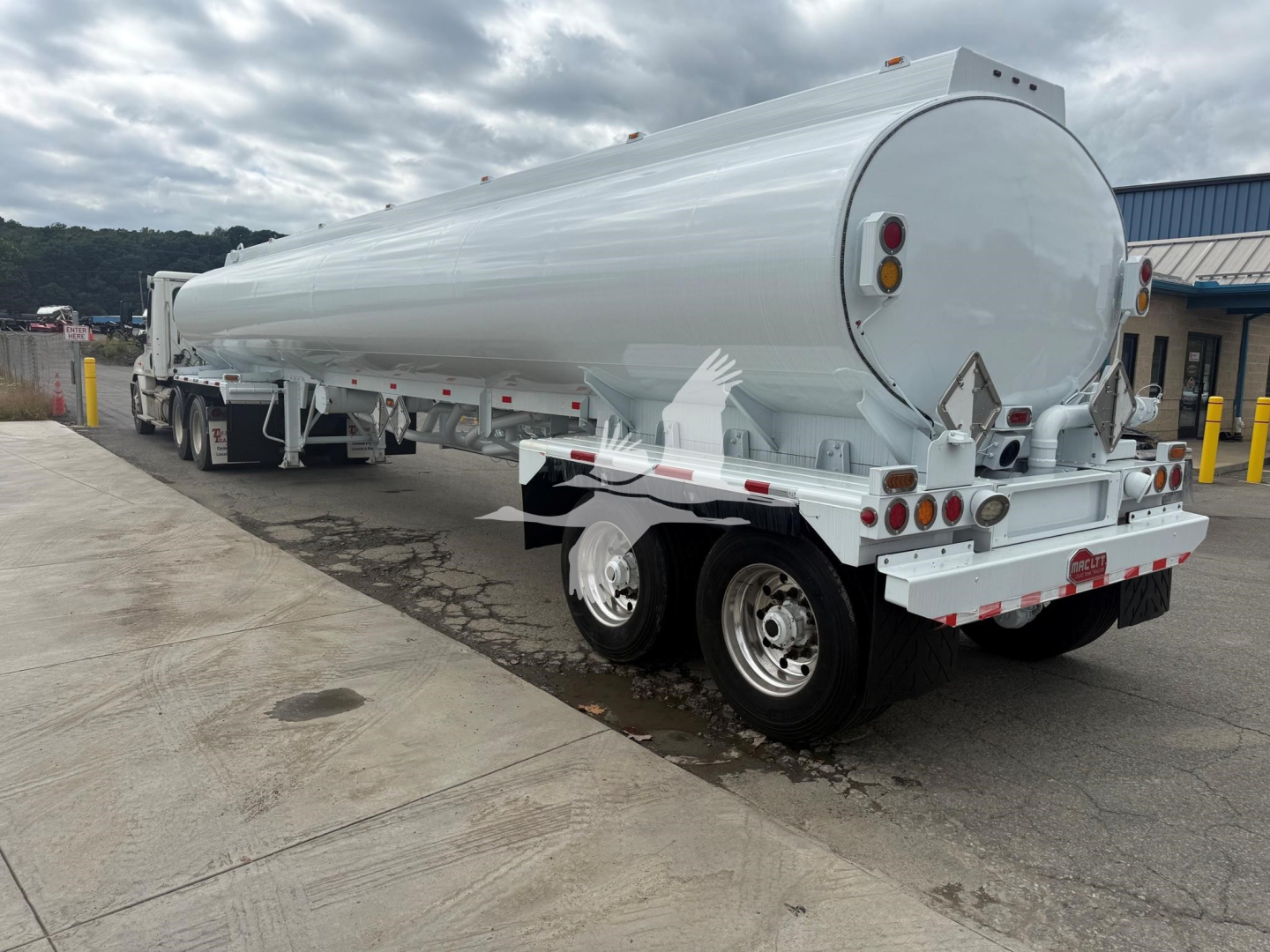

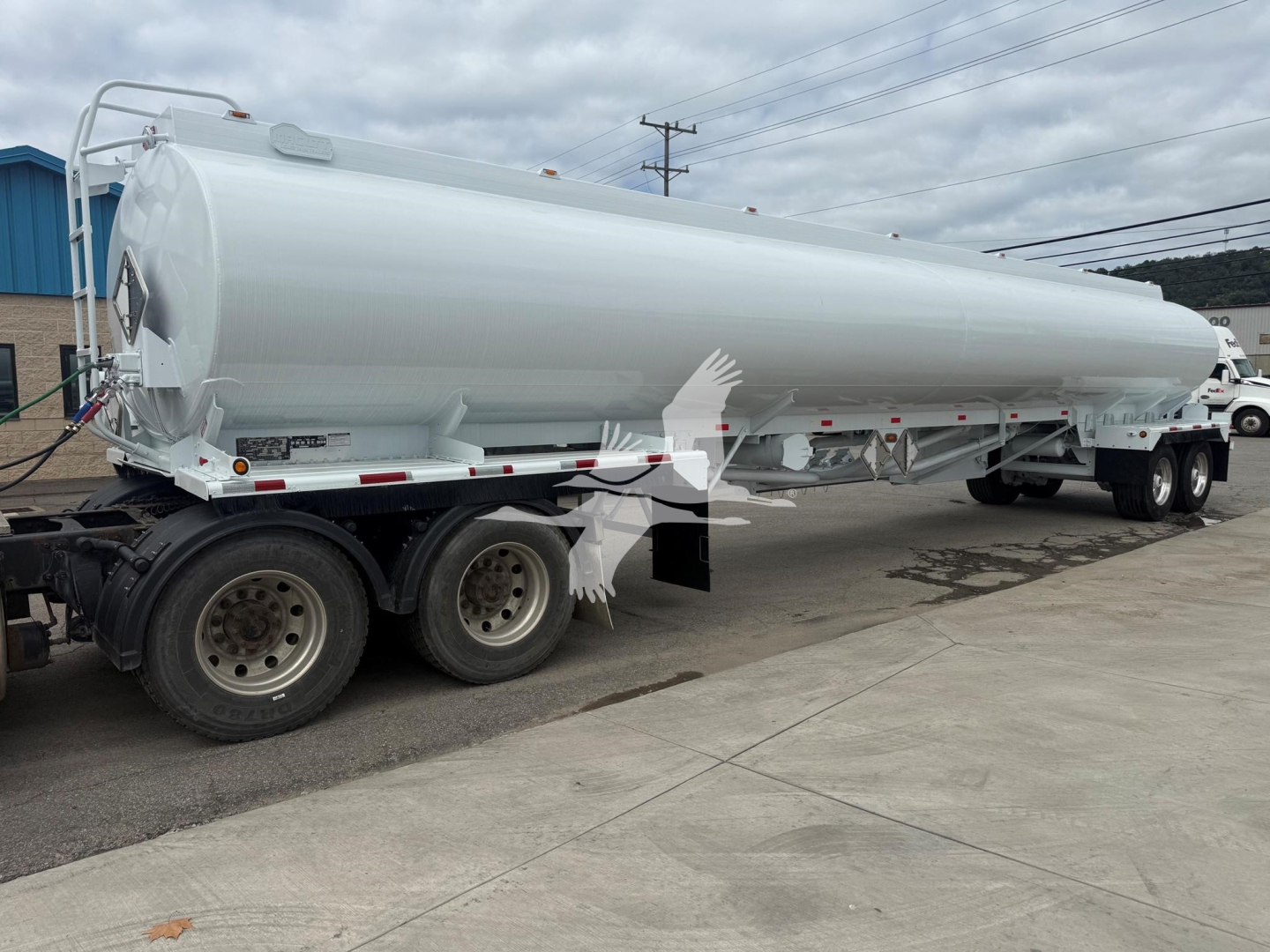

2020 Mac Petro Tank

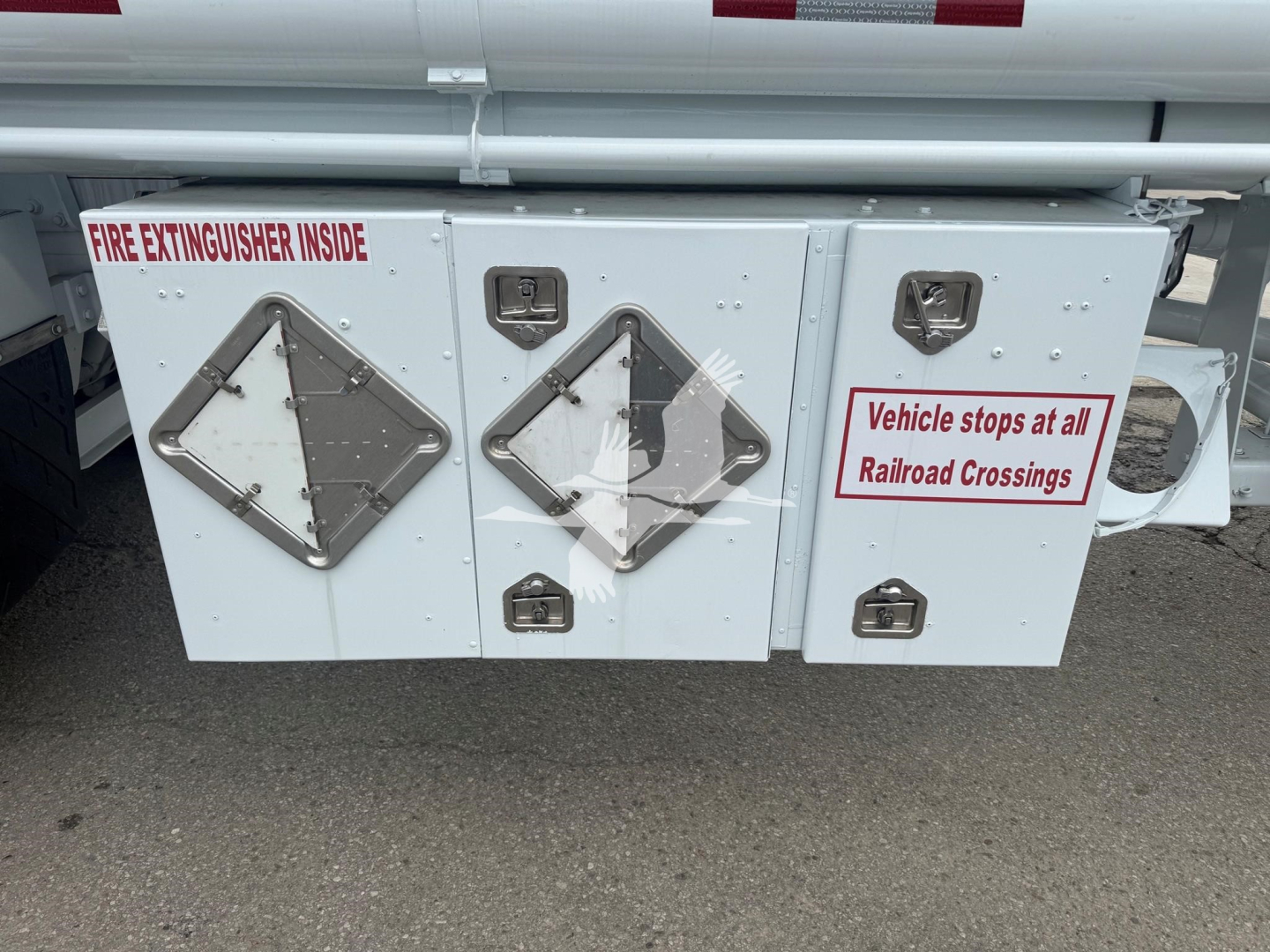

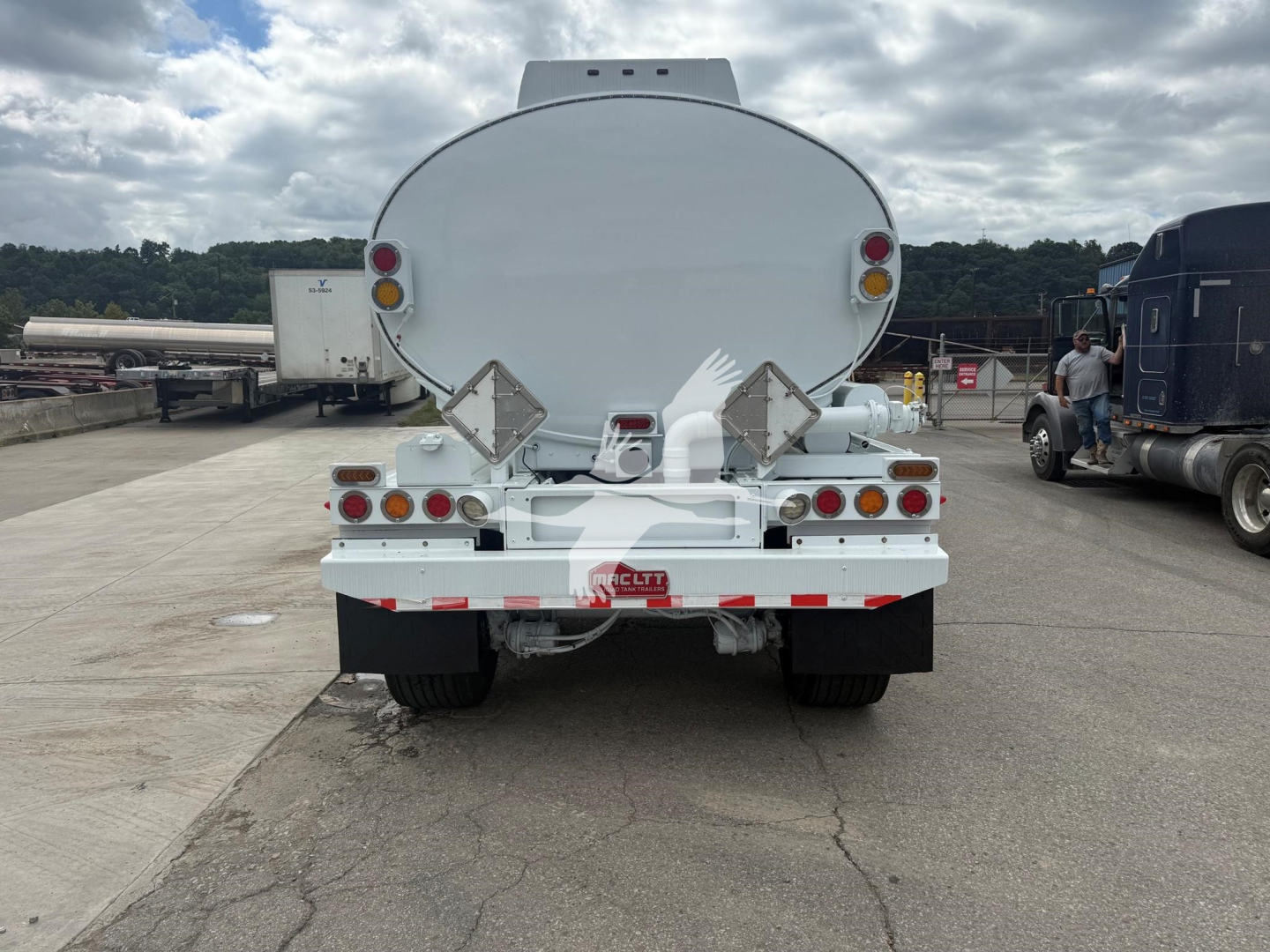

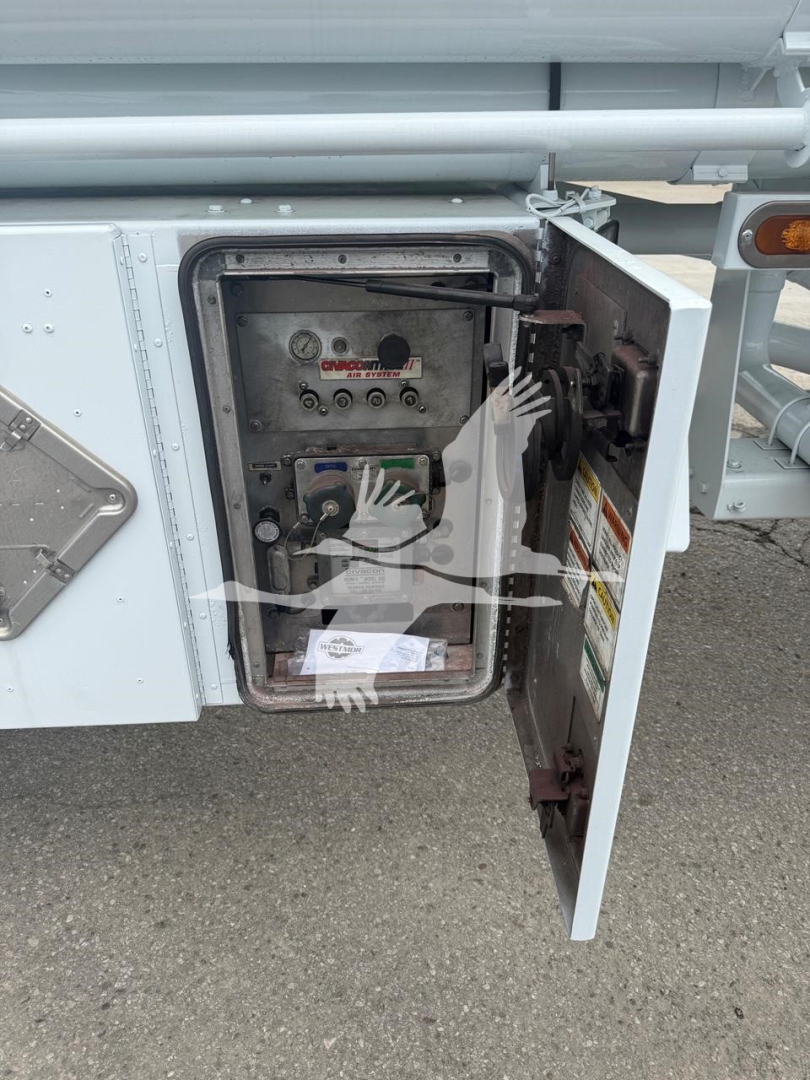

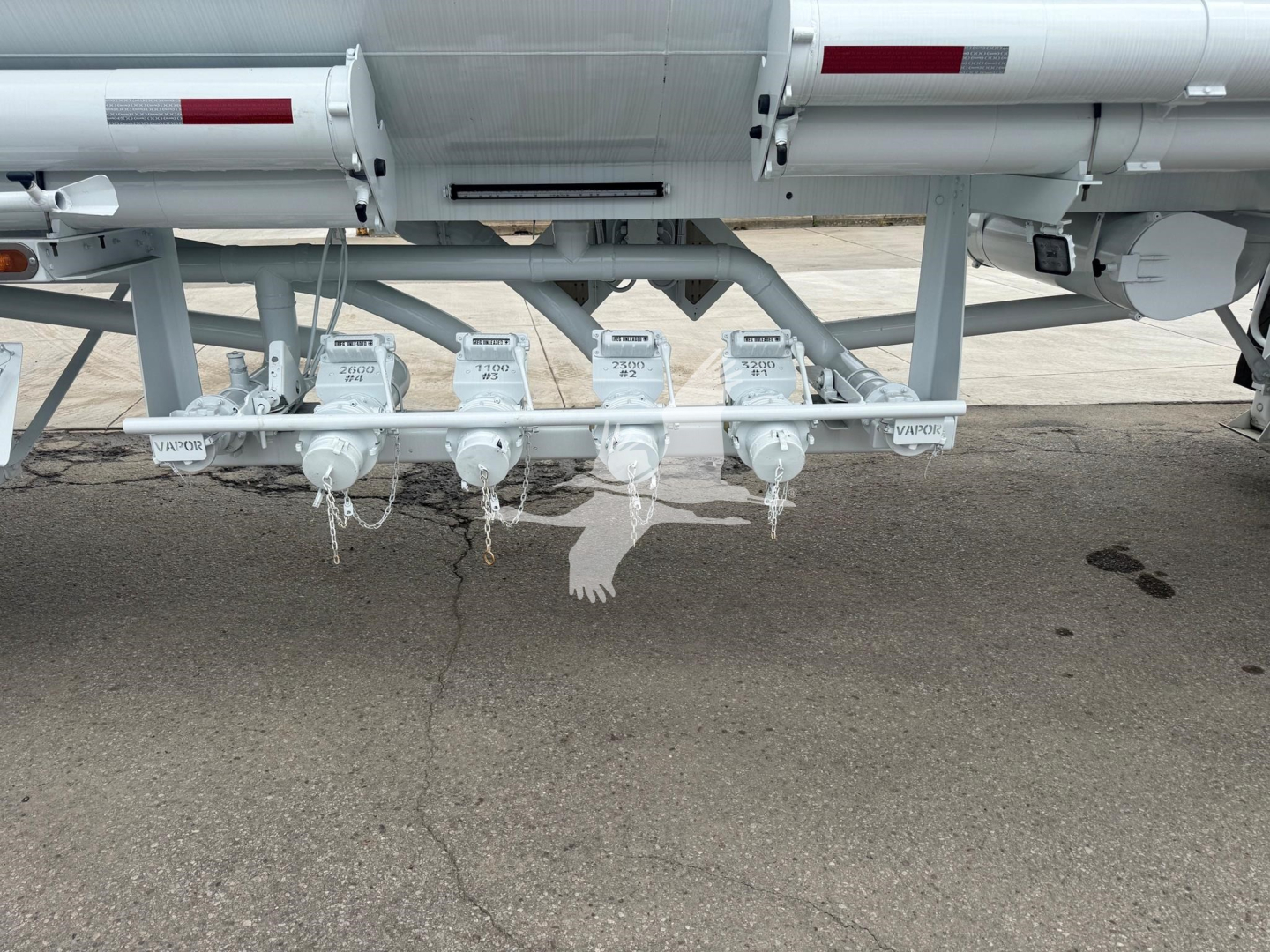

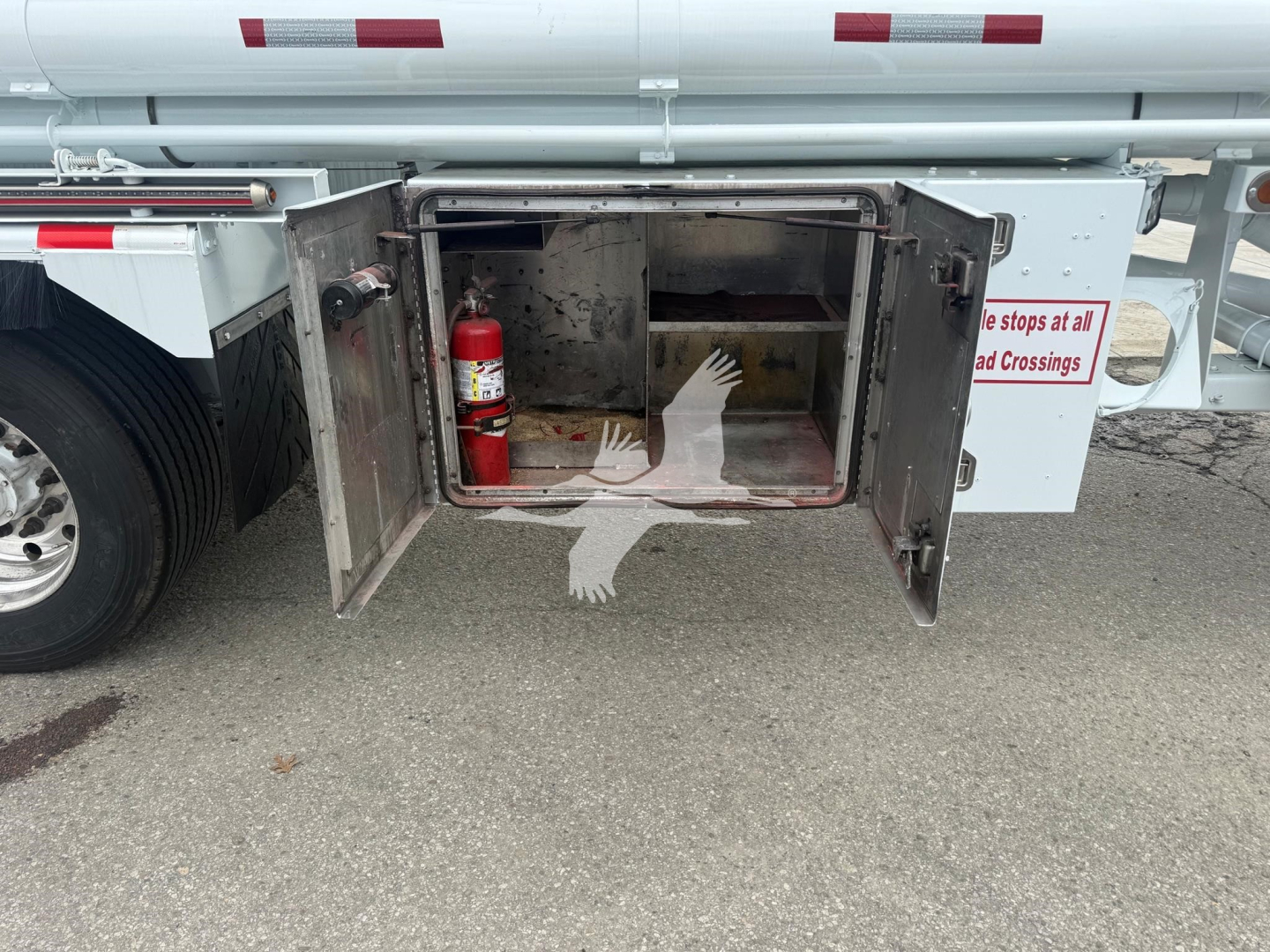

V&K Tests 6/26 I&P Tests 6/23 Inspection C-FHWA 6/26 Total Capacity 9200 Gallon Compartment Sizes 3200/2300/1100//2600 Shape/Style Elliptical MC Code MC-406 Bulkheads Single with Double between 3&4 Drain Troughs Under All Four Compartments Barrel Condition Good Product Hauled Gasoline Piping Aluminum Discharge Valves Openable Adaptors Sight Glass Bubble Sight Glass Commodity Indicators Yes, 8-Sided Vapor Recovery Three Outlets Overfill Protection Civacon ROM II, Top & Bottom Probes Emergency Valves Air EV Operators Inside EVO Cabinet Ladder Front Hose Tubes Four: Two C/S Front, Two C/S Rear Stick Tube One Fittings Cabinet 60"Wx30"Hx26"D w 3 Doors EVO Cabinet Part of 60" Box Fenders Flat Aluminum, Front & Rear Cone Holder Yes Placards (8) Flip Style: 2 per Side, 2 Front & 2 Rear Side Lights Seven (7) per Side on Flashing Rail Rear Light Pkg (4) Stop/Tail, (3) Clearance w/ S/T at 3:00 & 9:00 Backup Lights Yes Spot Lights Two at Discharge Area Strobe Light Three Total - One on C/S, Two at Rear # of Axles 2 Suspension Type Air Ride Suspension Brand Hendrickson Intraax AANT-23K Suspension Setting 49" Tandem Lift Axle None Tire Size 445/50R22.5 Tire % 3-75%, 1-40% Wheels Aluminum Brake % Disc Brakes King Pin Setting 30" 5th Wheel Condition Good Landing Gear Jost, Two-Speed Suspension Frame Aluminum Paint Entire Trailer Painted White Paint Condition New Comments Internal Vapor Line Internal Drains Spray Guard Side Skirts Swing-Out Light Bar on C/S, Front & Rear ISO 7-Way Auxillary Receptacle 12" Diameter x 4' Long Spill Kit Tube Behind Landing Gear. Door Each Side. 77.5" Track Axles Bendix ABS w/ Roll Stability
