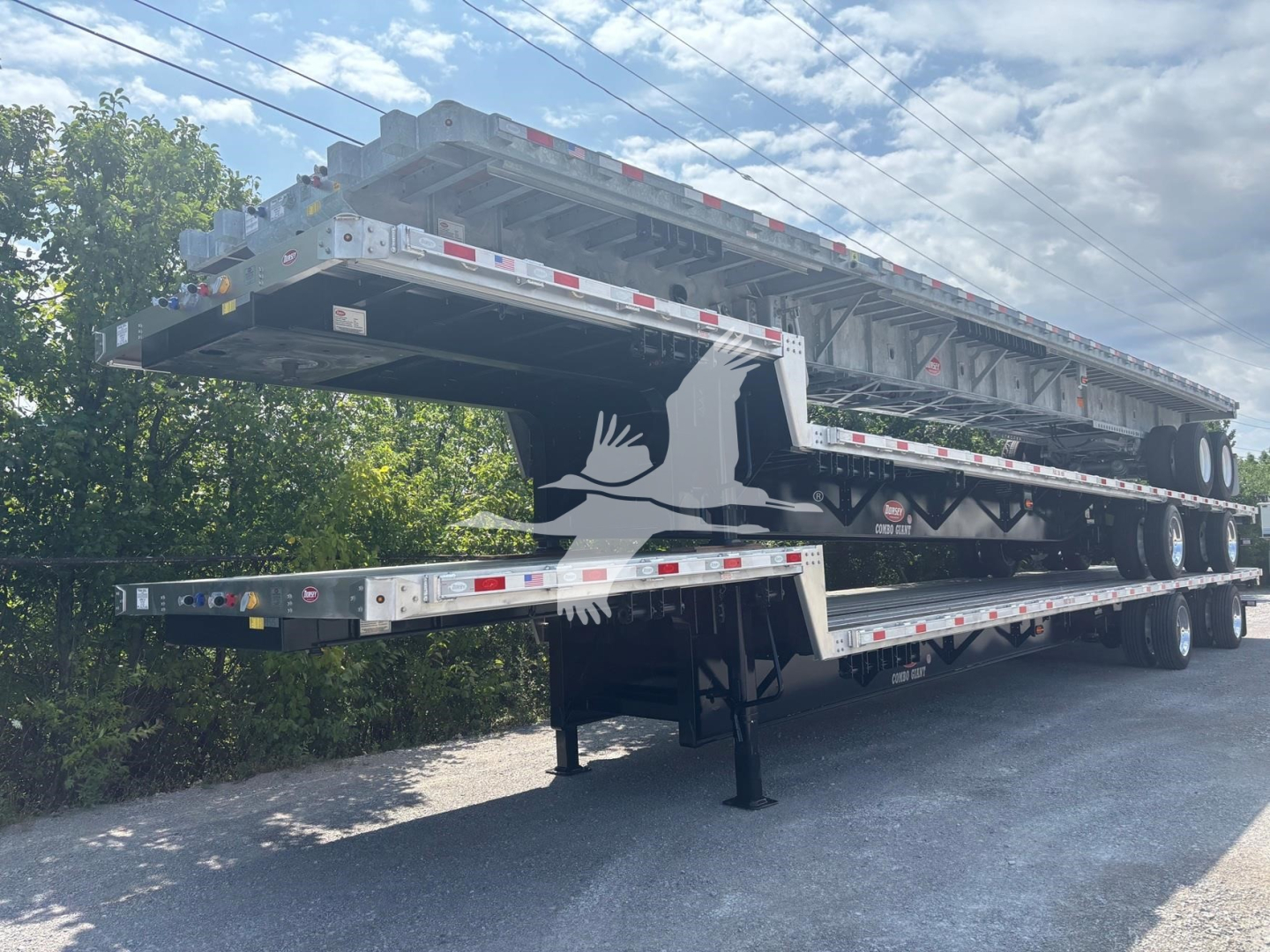

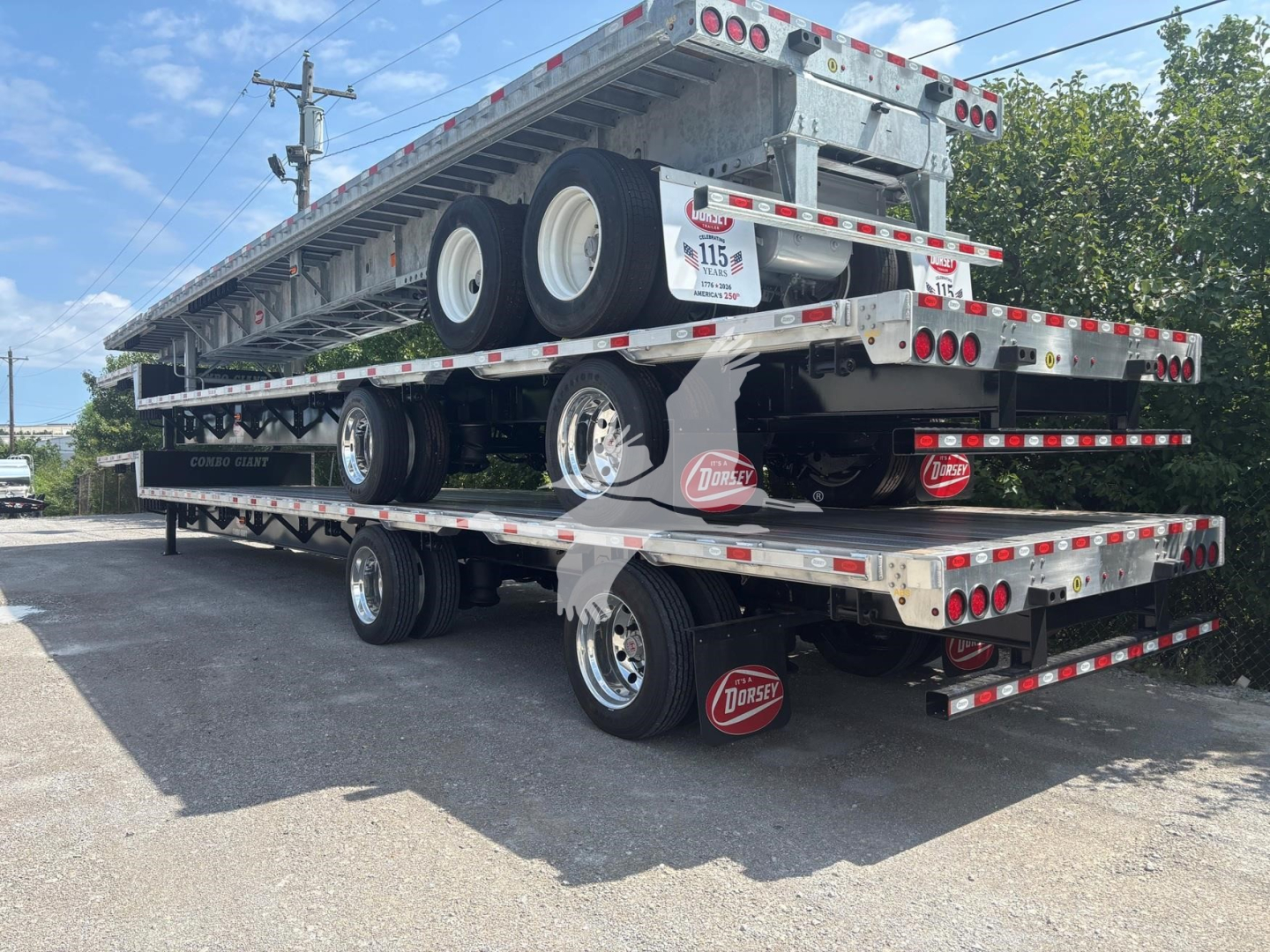

2027 Dorsey Combo Drop

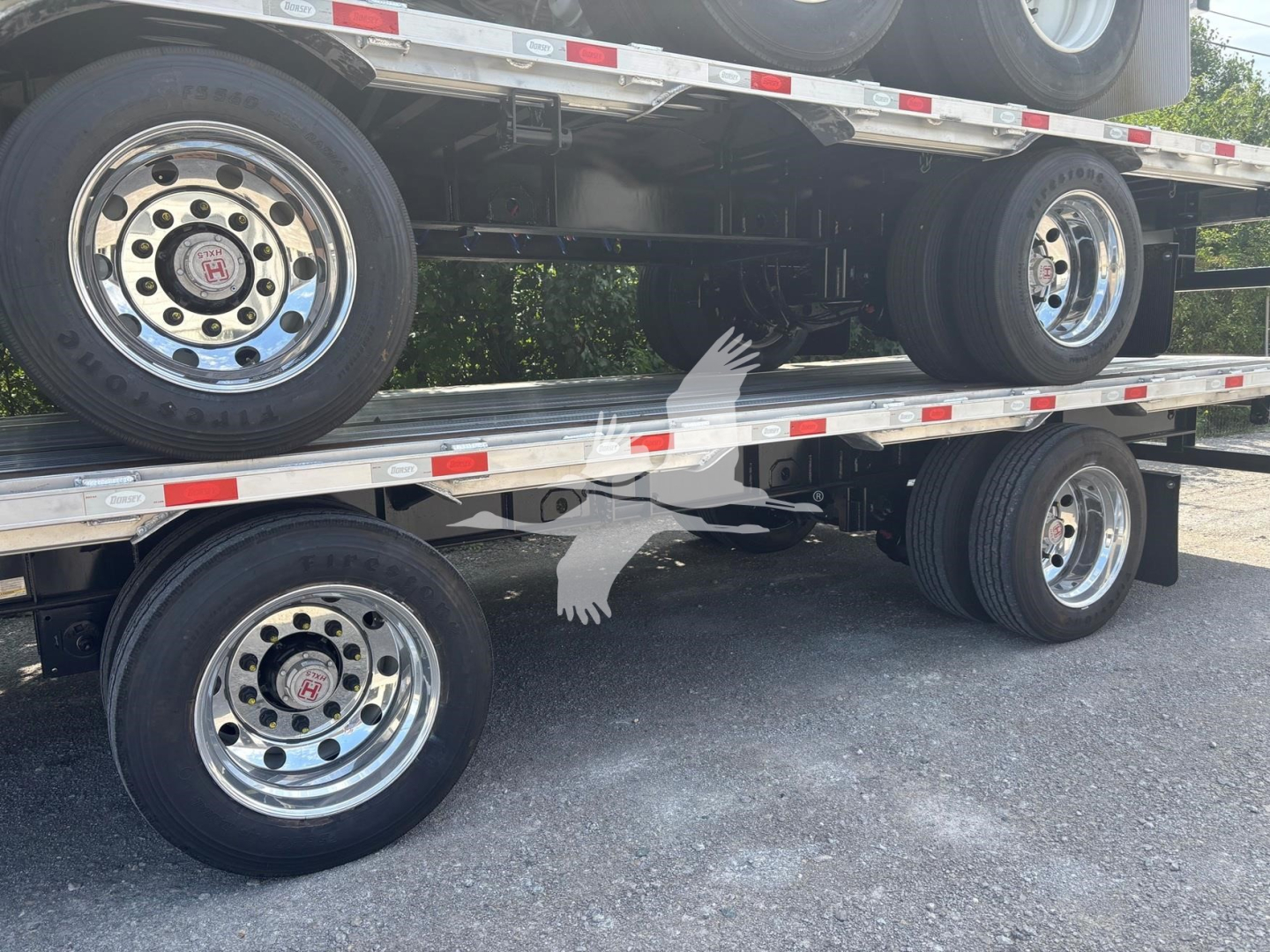

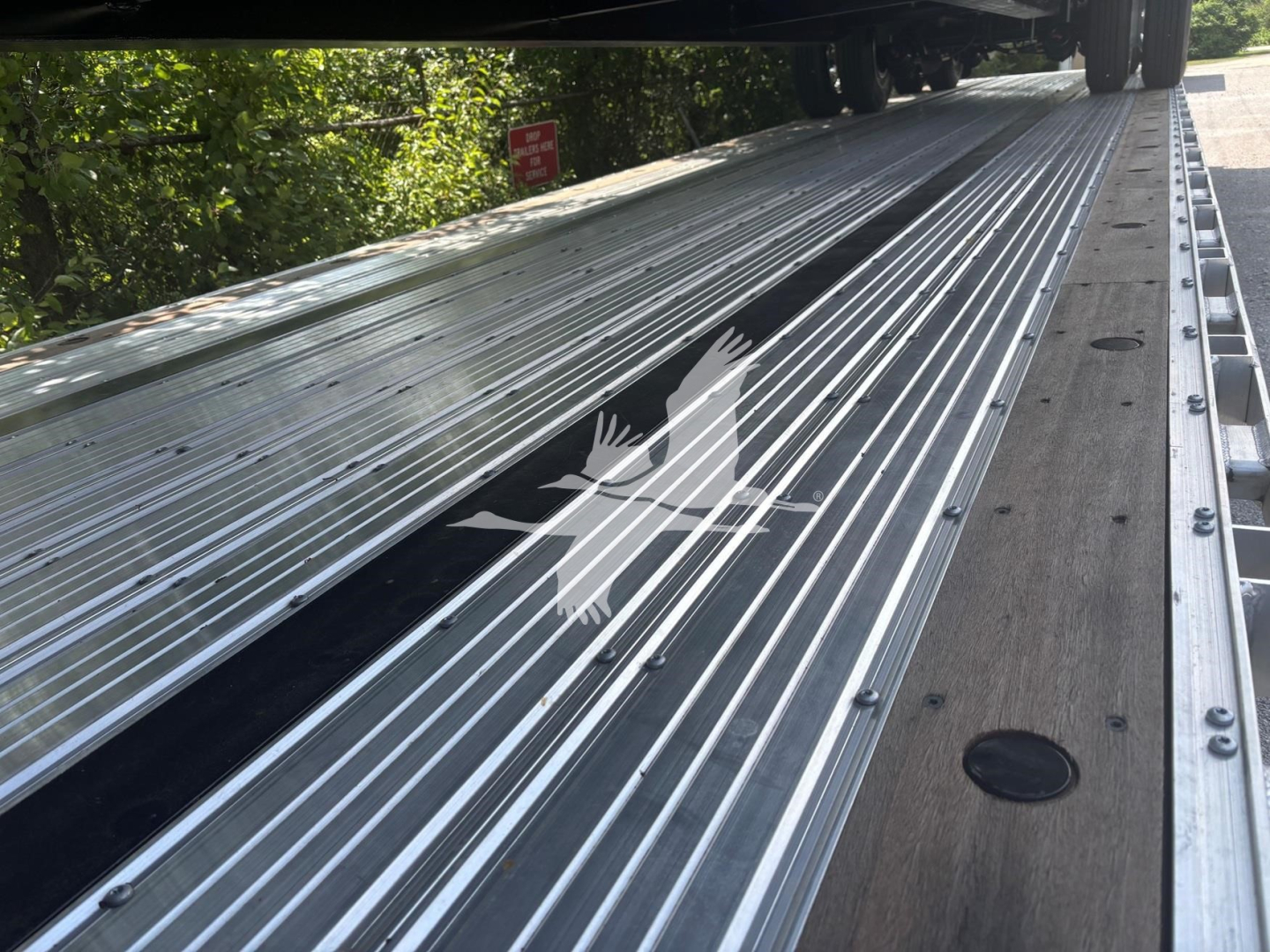

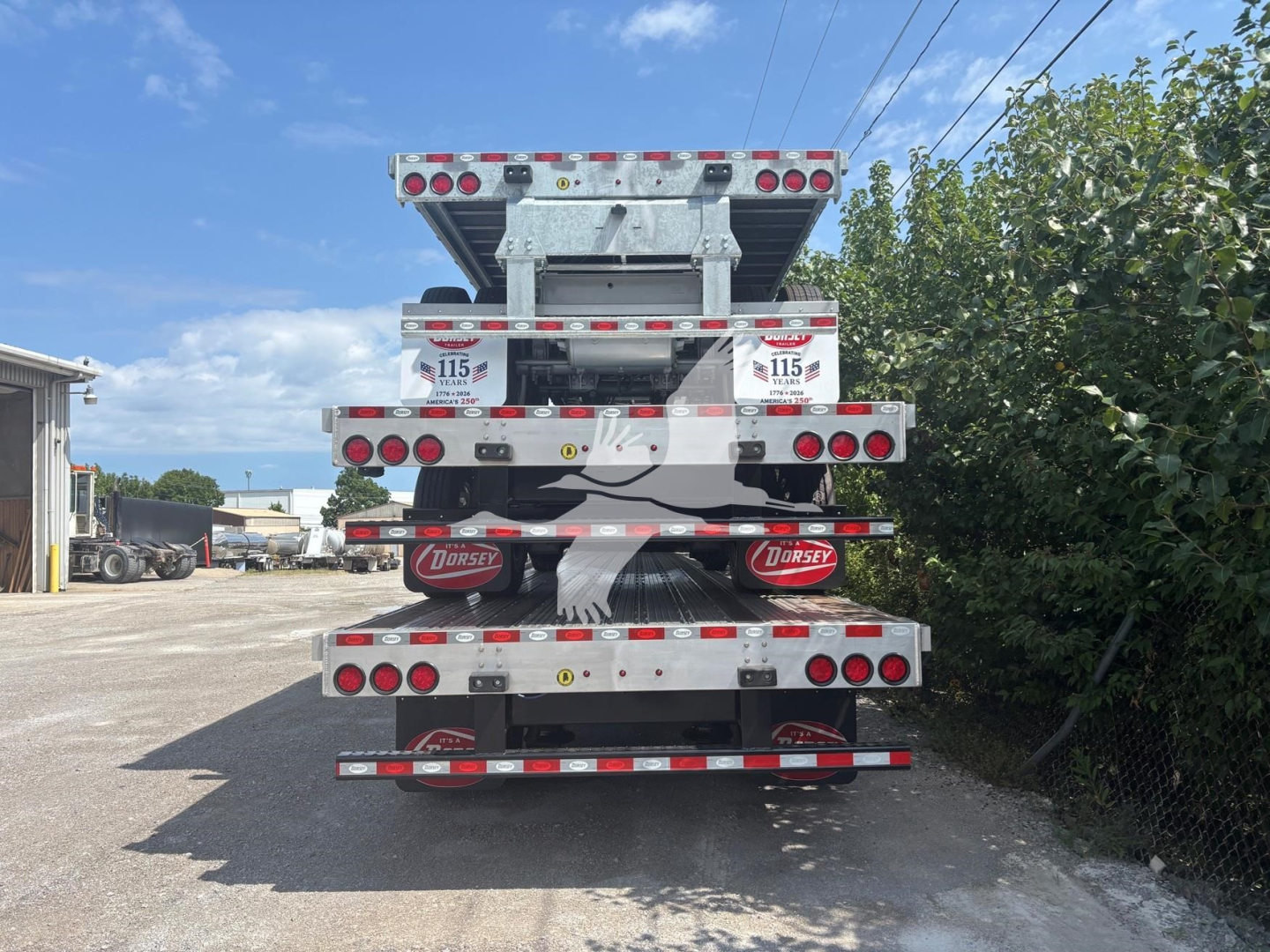

FET included in the price Length 53' Width 102" Top Deck Length 10' Main Deck Length 43' Main Deck Height 41" Weight 11,680 lbs. +/- 3% Floor Aluminum Nailing Strips 4 Chain Tiedowns 14 Pair Front/Rear Member Aluminum Side Rail Aluminum Pipe Spools Single Winch Track Alum Double L on Both Sides, Tie Bar on Both Sides Sliding Winches 12 Add. Receptacle ISO 7-Way Rear Lights (3) Stop/Tail, (3) Clearance Mud Flap Brackets Behind Front & Rear Axle Suspension Type Air Ride Suspension Brand Hendrickson HT250US Suspension Setting 10'2" Open, 61" Closed (Cal Legal Closed) Electric Dumpvalve Rear Axle - Wired to Center Pin of Aux 7-Way Tire Size 255/70R22.5-Firestone Wheels Polished Aluminum Outside / Steel Inside King Pin Setting 18" Cross Member Center 18" top deck, 12" bottom deck - Steel Coil Package Coil Pack w/ 4 Stub Crossmembers Landing Gear Jost, Two-Speed Tire Carrier Front of Main Beams Between Landing Gear Weight Ratings 80,000 GVWR - 54,000 in 10' LOCATED CINCINNATI, OH (We can deliver)
