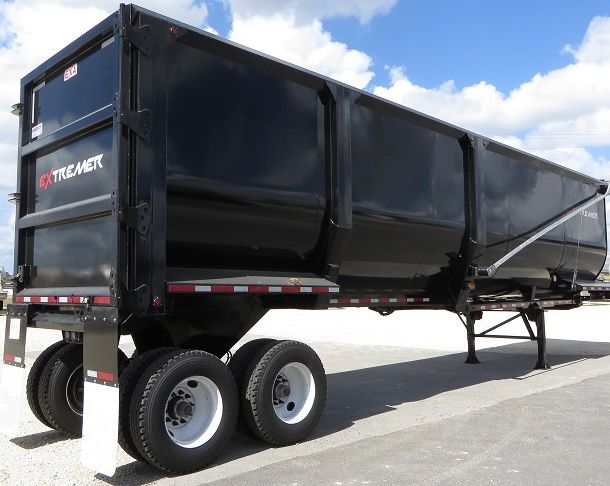

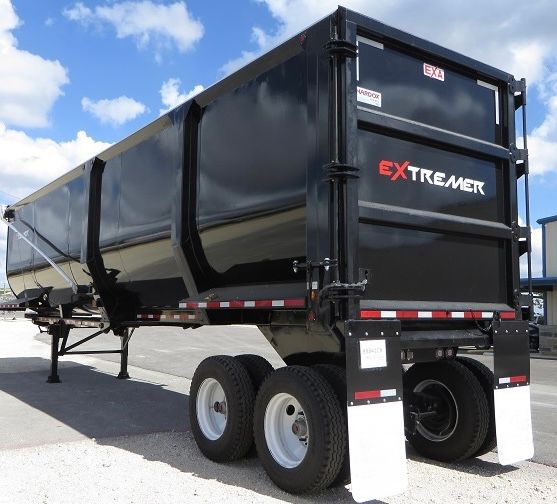

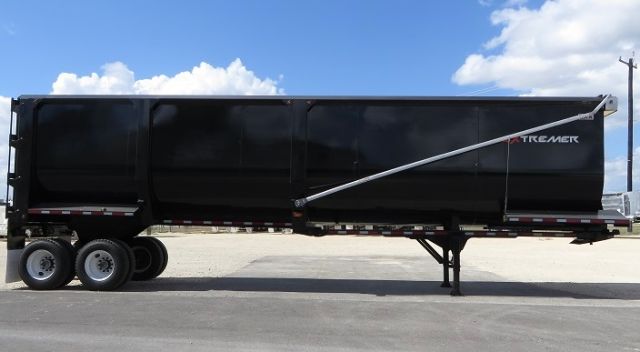

2024 EXA 89 CU.YDS. SCRAP/DEMOLITION FRAMELESS

2024 EXA 89 cu.yds. Scrap/Demolition Frameless End Dump Trailer Transportation of scrap, construction debris Capacity:89 cu.yds. Commodity:Transportation of scrap, construction debris Dump angle: 45 degrees, all 8 tires stay on the ground Overall Length:42 ft. Height: 12 ft 4 in, 105" side walls Width: 102 in. Weight: 22,500 Ibs Hydraulic Dump Hoist: 8", 5-stage inverted trunnion mount by Custom Hoists. Front-mounted outside of bulkhead. Suspension: 50,000 Ibs Hutch- Single Point Tandem with Oscillating Trunnion Bushing Body: 1/4" Hardox 450 Steel (175 Ksi, 450 Brinell Hardness) Top Rail: 4" X 4" x 1/4" tube with angle Gate: 3/16" Hardox 450 Steel (175 Ksi, 450 Brinell Hardness). Barn Door style with hinges on the curb side, air operated bottom latch and integrated mud flaps Front: 3/16" Hardox 450 Steel (175 Ksi, 450 Brinell Hardness) Bracing: 1/4" High strength steel internally stiffened Axles: Two (2) 30,000 Ibs. each axle with automatic slack adjusters and Stemco wheel ends. Brakes: 16.5" x 7" brakes with 251M ABS landing Gear: One (1) pair of Holland 2-speed landing gear Upper Coupler: Oscillating fifth wheel plate with Holland King Pin Draft Arms: 5"X3"X1/4" Rectangular Tube Tires: Eight (8) IIR x 22.5 16 Ply Wheels: Eight (8) 8.25 x 22.5 Steel 10 Hole Hub Piloted Access Ladder: Steel front and rear ladders Coating: Two coats of polyurethane high-gloss on an epoxy primer (4-6 mils DFT} Paint Prep: All steel surfaces shotblasted and pre chem wash Conspicuity tape: 3M Per DOT Fenders: Rear steel bolt-on Full Dump Position: Without lifting the front wheels Lights: Sealed harness and recessed Optronics Glolights LED per DOT and ICC Mud Flaps Two (2) Anti-sail attached to rear gate TARP IS OPTIONAL WE HAVE FINANCE PROGRAMS TO FIT EVERY SITUATION. We make it easy and affordable for you to finance your next truck or trailer quickly and easily. Call JEFF Today at 469-906-2024 Hablamos espanol llamenos hoy para iniciar el proceso para obtener su credito. Aqui aceptamos todos los tipos de credito.
