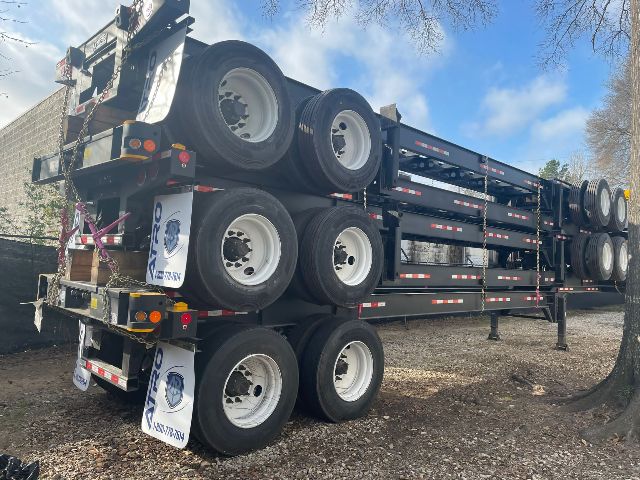

2023 ATRO 40' CONTAINER CHASSIS TRAILER

2023 NEW ATRO STANDARD 40’ INTERMODAL CONTAINER CHASSIS Overall Length: 40 ft. 6’’
Conspicuity: Meets DOT requirements Main Beams: Wide flange I-Beam 12 in deep, 19 lb/ft, hot rolled steel, ASTM A572-50
 Upper Coupler Assembly: Pick up plate is 5/16 in. thick Front Bolster: Fabricated 7” x 9” channel
 Rear Bolster: Fabricated 7 1/4” x 6 7/8” channel with eyebrow light protectors
ICC Bumper: 4 in x 4 in x 3/16 in Tube step bumper (No rubber dock bumpers)
 Twist Lock & Slide Pins: Meets ISO standards and requirements
 Overall Chassis Width, Length: 96” x 40’ 6” (48 in rear height)
 Kingpin Location: 30 1/2 in from the rear face of the front bolster
 Mud Flaps: Plastic Atro Brand ELECTRICAL SYSTEM 12 volts, 7-way split pin receptacle plug; modular wiring harness
Light Attachment, Type: Flange mounted, LED
LANDING GEAR
GOOSENECK BEAMS 5 in deep I-Beam, fabricated with 1/2 in x 4 in flanges and 1/4 in x 4 in web LANDING GEAR: Two-speed AAR approved, square leg. 55,000 lb lift capacity, 160,000 static load capacity
 Landing Gear Foot Group: 10 in. by 10 in. low profile sandshoe
 Crank Handle Location: Road side handle
 BRAKES
Drum: Outboard mounted
Brake Lining Options, System Type: Standard, 2S1M
 WHEELS
Rims: 8 1/4 x 22.5 hub piloted tubeless, white
 Tires: 11R 22.5
Hub Type, Material: Hub piloted, steel
 AXLES
Axle Quantity: 2 Axles
Axle Centers: 49 in
Tandem Location: 54 in
 FINISH
Metal Preparation: Clean, dry steel and NACE No. 3 /SSPC-SP-6 “Commercial Blast Cleaning”
 Primer: 70% Zinc Rich Primer
Topcoat: Urethane
 Color: Black SUSPENSION Suspension Type: Spring-ride Springs: Three leaf
 We sell and finance trailers. WE WORK WITH ALL TYPES OF CREDIT AND HAVE FINANCE PROGRAMS TO FIT EVERY SITUATION. We make it easy and affordable for you to finance your next truck or trailer quick and easy. Call FRED Today 469-225-0108 Hablamos español llámenos hoy para iniciar el proceso para obtener su crédito. Aquí aceptamos todos los tipos de crédito.

Drum Condition:

New

Composition:

Steel

Suspension Type:

Spring Ride

Number Of Axles:

Tandem

Color:

Black

Brake Condition:

New

Led Lights:

Yes

Tire Condition:

New
