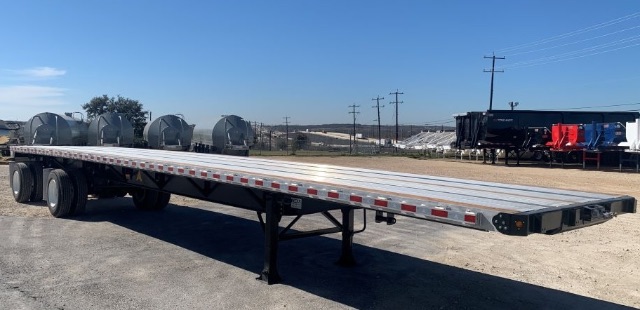

2024 ALDURA 48X102 FLATBED COMBO TRAILER
Capacity: 74,000 lbs. (GVWR).
Commodity: Transportation of freight.
Length: 48'.
Height: 4'10".
Ride Height: 49 3/8".
Width: 102".
Weight: 12,350 lb.
Coupling:
King Pin Setting: 24".
Upper Coupler Plate: 1/4".
Upper Couper Height: 49".
Body Structure:
Main Beams: 24" Fab. - PreCamb. "I" Beams.
Crossmeber Spacing: Steel 4" "I" Beam - 12" O.C.
Side Rail: Aluminum 6" "C" Channel Profile.
Winches: fourteen (14), eigth (7) on the left side and six (7) on the right side.
Spools and Pockets: Single Spool and Pocket, 24" between centers.
Floor Decking: 1 1/4" Aluminum with three (3) Apitong nailer boards.
Bumper: Per DOT.
Front Skirt: Steel Front and Corners.
Rear Skirt: Aluminum.
Dock Bumpers: Two (2) Rubber in the Rear.
Lights:
Main System: Traktolamp lights and sealco main harness.
Front Connector: 7-Way SAE J560.
Mid-Flashers: Mid Lamp, Markers and Flashers on each Side.
Landing Gear:
Landing Gear: 1 (one) Holland.
Axles and Suspension:
Model: Tandem.
NO. Of Primary Axles: 2
Suspension: Meritor MTA25, 25klb Cap.
Axle Spacing: 122".
Axles: Two (2) 25,000 lbs ea.
ABS: Wabco ABS.
Hub and Drum: Cast w/steel HUB 10
Wheels and Tires:
Wheels: Eight (8) 22.5".
Tires: Eight (8) 22.5 11R.
Air System:
Gladhands: Fixed at front.
