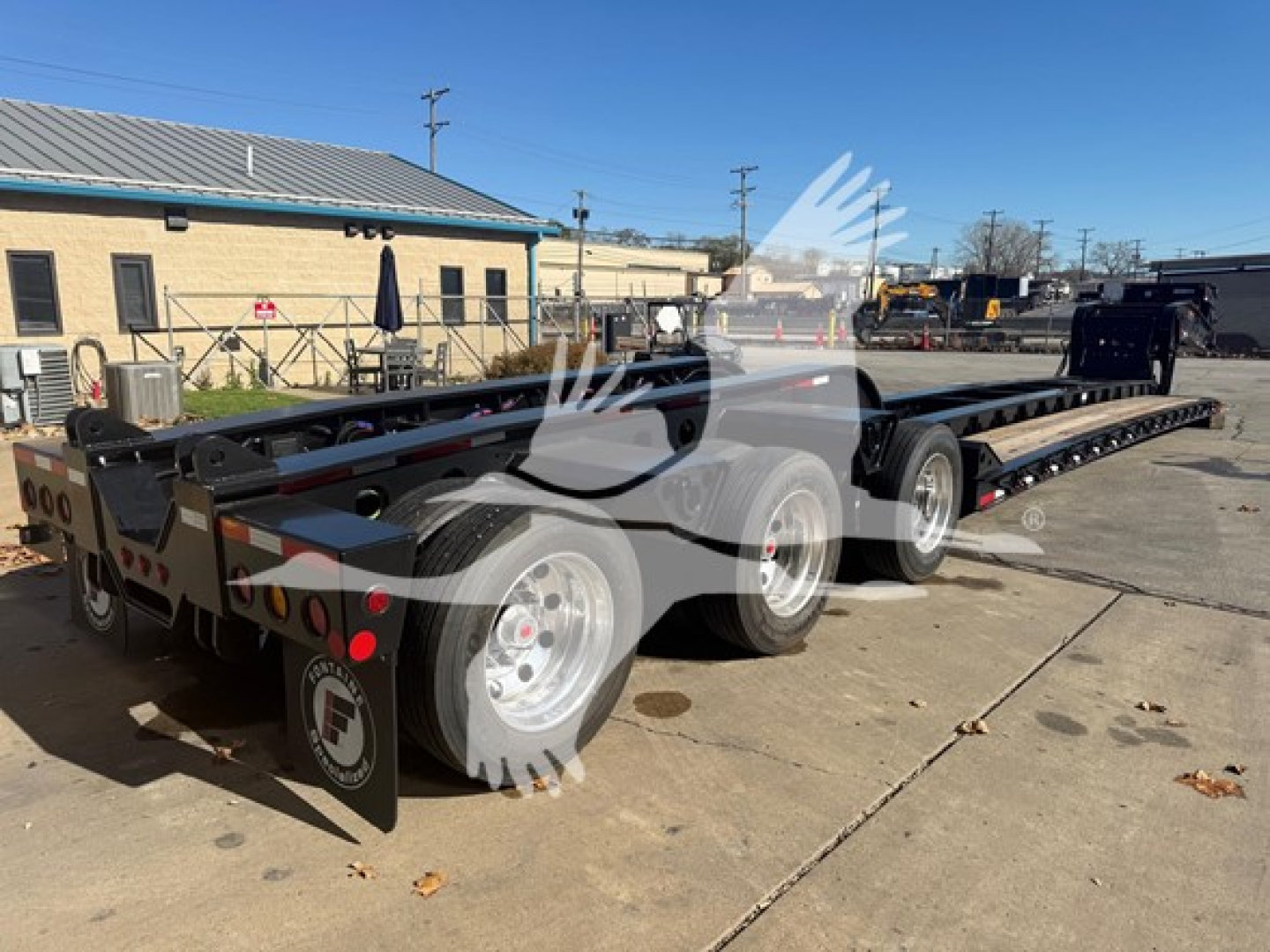

2026 Fontaine Magnitude 60Hd Mdsr

Heavy 60 Ton or Lightweight 65 Ton. Trailer can be ran 2+3+2 with a 60 Ton Rating or 4/5 Close Couple to achieve a 65 Ton Rating. Intermediate and Rear Flip Axles IN STOCK AND AVAILABLE! Length 55' 10" Width 102" Top Deck Length 12' 8" Gooseneck Main Deck Length 28' Main Deck Height 14.5" at Side Rails; 23" at Main Beams Weight 30,301 Lbs. +/-3% Flat Body Compatibility 36" or 83" Neck Ext, 60/90 Flip & EQ2 Spreader Floor 1.5" Nominal Wood - Side Rails Only Ramps None, Front Deck Sloped Down Side Rail Drop Side Rail - Steel Outriggers 13 Pair, Removable Swing Type D-Rings 17 Pair Toolbox Two Covered Trays Between Mainbeams Side Rail Lights Three (3) per Side including Mid Turn Rear Lights (3) Stop/Tail, (3) Clearance Strobe Lights Amber Strobes with Battery Power Flag Holders Two Pair Modular Connection Modular Gooseneck Gooseneck Hydraulic Detachable, Non-Ground Bearing Loaded 5th Wheel Dual Cam Pawl Arm w 7 Ride Height Positions, 50" Suspension # of Axles 3 Suspension Type Air Ride Suspension Setting 60" Axle Spacing Lift Axle Air Lift Rear, Chain Lift Front Manual Dumpvalve Yes Raise & Lower Valve Mechanical Ride Height Control Valve Tire Size 275/70R22.5 Wheels Aluminum/Steel Liquid Filled Gauge Yes UnderFrame Cross Member Center 24" Paint Black Weight Ratings 65 Ton in 12' Length w/ Closed 4-Axle Comments 60 Tons in 16' as a 3+2 Axle Configuration w/ Flip Box Deployed 106" Swing Radius 36" Flip Box (142" Total Swing Radius)
