2025 Xl Specialized Mini Deck

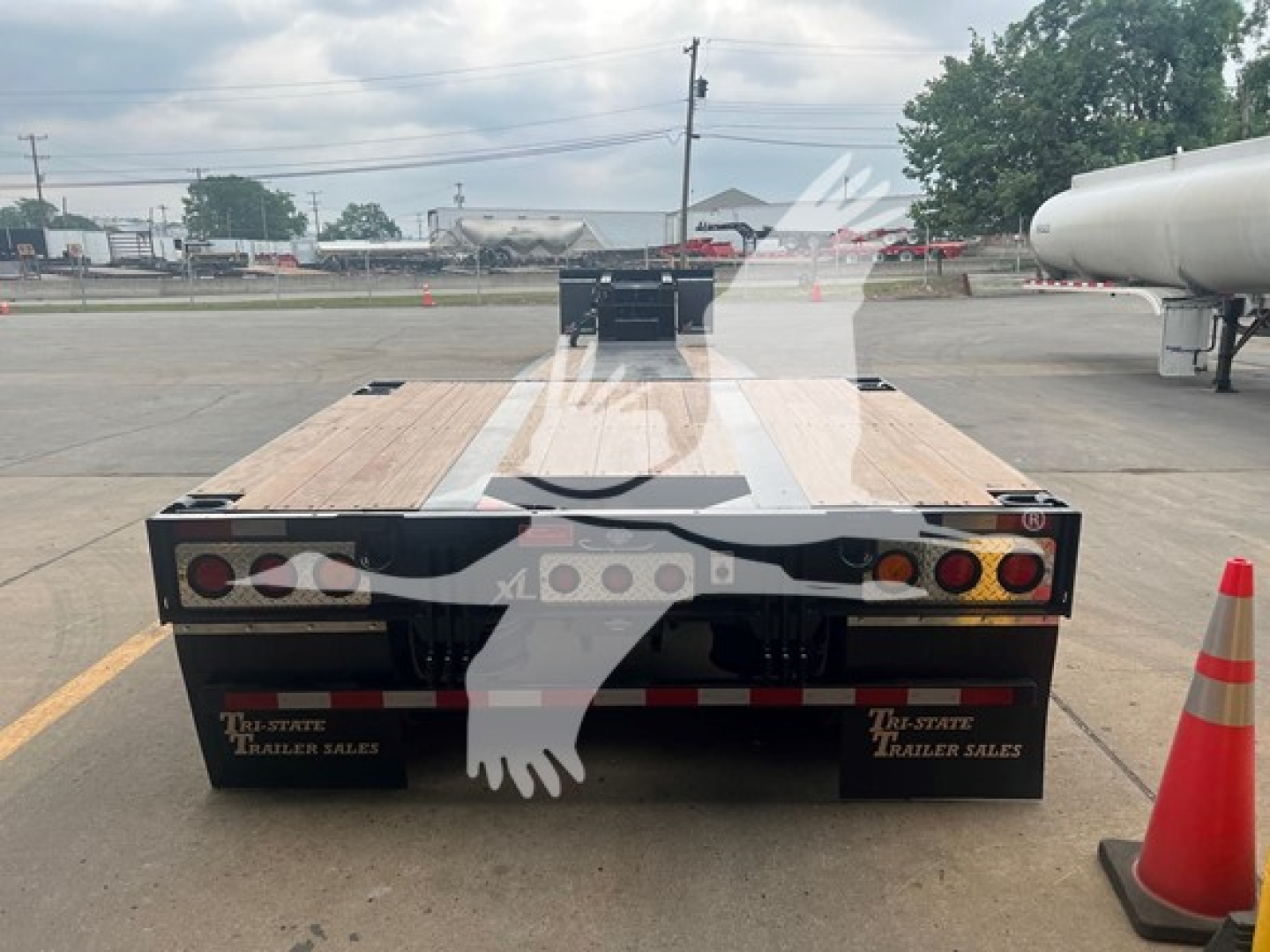

FOR RENT/LESE ONLY! Length 53' Width 102" Top Deck Length 11' Low Profile Scraper Neck w/ Full Width Deck Main Deck Length 33' with 32'6" Clear Deck Main Deck Height 12" Loaded with 4" Ground Clearance Rear Deck Length 9' Compatibility Flip Axle Connections at Rear Floor 1 1/8" Apitong Between Main Beams & Outer Rail Ramps Tapers to 4" Side Rail Perimiter Beam - Steel Outriggers None D-Rings 12 Pair Rear Lights (3) Stop/Tail, (3) Clearance Strobe Lights 4" Amber as 3rd Tail Light with Battery Back Up Flag Holders Two (2) Pair Gooseneck Hydraulic Detachable, Non-Ground Bearing Loaded 5th Wheel 49" w/ Five (5) Variable Ride Height Positions Pony Motors 13HP Honda Power Unit with Dual Hydraulics # of Axles 2 Suspension Type Air Ride Suspension Brand Hendrickson Suspension Setting 54" Raise & Lower Valve Yes Tire Size 255/70R22.5 Wheels Aluminum / Steel Liquid Filled Gauge Yes King Pin Setting 16" Cross Member Center 4" I-Beams on 18" Paint Black 60,000 LBS DISTRIBUTED, 60,000 LBS IN 16' Full Width Gooseneck with 1 1/8" Apitong Floor 86" Swing Clearance 2 D-Rings per Side on Gooseneck One Pan Style D-Ring in Each Corner of Gooseneck Steel Decking Between Main Beams with Durabak 2 D-Rings per in Tail Channel One Pan Style D-Ring in Each Corner 4-Way Plug at Rear for Battery Backup for Strobe
