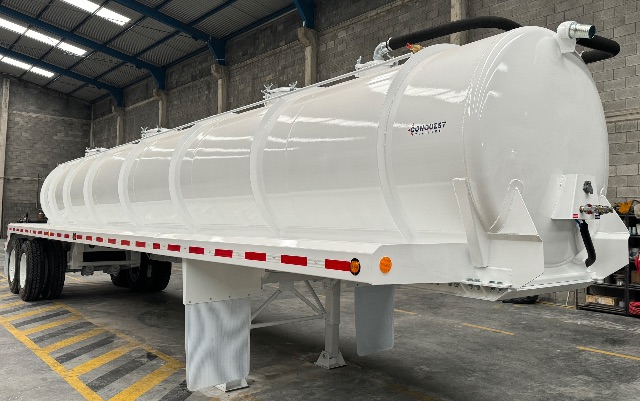

2026 GRECER 130BBL VACUUM STEEL TANK TRAILER
MODEL: CONQUEST
Non-Coded.
Capacity: 130 BBL or 5,460 gal. + 1% Expansion.
Material: Carbon Steel.
SPECIFICATIONS:
Commodity: Transportation of oilfield fluids such as
water, mud, oil field waste.
UPPER COUPLER: Adjustable 3/8 in plate with
Holland Kingpin 2".
DESIGN PRESSURE: 15 PSI, Tested At 23 PSI.
COMPARTMENTS: Single
COMPOSITION: Body Carbon Steel A-36 ¼” gauge.
Chassis: 1/4 plate chassis designed for high strength.
Frame: Full Length 3/16 in. A-36 Both sides.
BAFFLES: 3 (1/4”) steel plate.
FENDERS: 40 ft length steel GA 12.
STIFFENERS: Eight (8) rolled of 3/8 in.
SIGHT GLASS: 2”.
WELDS: Inside and out, with mig welding.
AXLES: 2 (30,000 lbs.) each, 102 in. wide, 77.5 in.
track TP type with automatic slack adjuster.
SUSPENSION: 2 (30,000 lbs each, air ride,
Hendrickson) HT-300.
BRAKES: Air brakes with two boosters.
FMVSS-121, ABS 4S/2M Bendix anti-lock brake
system.
LANDING GEAR: 2 Speed Crank Heavy Duty
(JOST).
ACCESS LADDER: One (1) stairway in the rear with
thru-tread steps.
WALKWAY: Driver's aluminum side tank length
through-treaded walkway with toe-kicks and handrails.
TOOLBOX: (1) 18” X 22” X 30” located at driver’s
side and Basket for cones.
BUMPER: Heavy duty (tubing 4x3x.375), per DOT
requirements.
MANWAYS 20”: 3 on top, one on rear head.
OUTLET: Two (2) 4 in. butterfly valves at rear.
SHUT OFF: ball type primary in front manway, ball type
secondary 14 gal on driver’s side front with drain.
RELIEF VALVES: 1 1/2” vacuum and 1 ½” pressure.
V/P GAUGE: +30, -30 vacuum / pressure.
OUTSIDE PAINT: Polyurethane with Hempel etching
primer, previous sand blast.
COATING INSIDE: HEMPADUR 204 high build epoxy.
LIGHTS: Sealed harness and GROTE LED lights per
DOT. Two rear work lights.
WHEELS: 10 holes, 8000 lb, 8.25 x 24.5 (8 pcs).
TIRES: 11R 24.5 all-terrain Triangle
