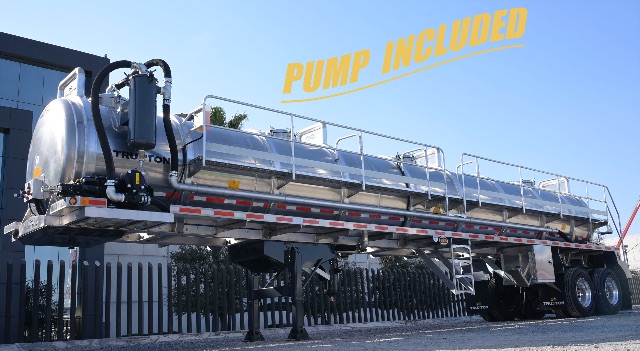

2025 TRUXTON 150BBL ALUMINUM VACUMM TANK TRAILER WITH PUMP
QUALITY TECHNOLOGY AND INNOVATION
ALL ALUMINUM RIMS !!
2AXLES
Capacity: 150 BBL (6,300 Gal)
Lenght: 42’
Compartments : 1
Shape : Straight Cylindrical
Shell Material :Aluminum 5454-H32 ¼” thickness
Head : 3/8” th Aluminum 5454 H0
Baffle : (3) 3/8” th Aluminum 5454 H0
Operating Pressure : 15 PSI.
Vaccum Pressure : 22” in/Hg External
______________________________________________________________________________________
COMPONENTS
Chassis: High resistance extruded Aluminum Angle 6061 T-6 3/8” x 3 ½” x 5”
Reinforcing Rings: High resistance extruded Aluminum Channel 6061 T-6 3/16“ x 4“ x 2“
Dam Drains: Aluminum tube 1 ½“ Dia. Ced. 40 6061 T-6
Manhole : (1) 20” 6 wing nuts on rear head
(3) 20” on top
Gasket: Manhole: Black Nitrile (Buna-N) gasket
Tray : Each side with support on both part of ¼” thick
King Pin Plate : 3/8” Thick SA-572 GR-50 Carbon Steel with Holland King Pin
Static Cable: Antistatic Tape with Metal Eyelet
Manovacometer: Installed on rear pilot side -30 Hgin at 60 PSI
Level Indicator: 5” glass sight eye on the rear head
______________________________________________________________________________________
LIGHTS AND WIRING
Grote 12-24 Volt Flange Mount LED Light System with Protective Grommet FMVSS Compliant. Combination turn signal
and center marker lights, one on each side.
Harness : UBS® Main Power Outlet Harnesses, 7 Conductors Grote
BZ111-5 work light, Material: Polycarbonate lens, Die-cast aluminum housing.
Rear identification lamps 2 ½” day. Grote red color
Work light 1600 lms BZ101-5 polycarbonate lens, Grote die-cast aluminum housing
License plate light 60671-3 9-32 V Grote FMVSS 108
Strobe light 7747-3 SAE J595, SAE J1889, SAE J186a
LED ceiling light 2 1/2 amber polycarbonate lens, Grote FMVSS 108 polycarbonate
housing
Ligths: 2 1/2" red LED ceiling light PVC protective ring, Polycarbonate lens, Polycarbonate
housing GroteFMVSS 108
4" red LED ceiling light with acrylic lens, white housing FMVSS 108
Hi Count® Grote 12V FMVSS 108 Oval LED Stop/Tail/Turn Lights
Oval ceiling light Polycarbonate lens, red polycarbonate housing led G6002 stop
Grote FMVSS 108
Amber reflective 3"
Red reflective 3"
Connection: 7-way sockets heavy duty (SAE J560)
______________________________________________________________________________________
COMPONENTS IN SUB-CHASSIS
Landing Gear: Jost two speed
Crank Location: Crank handle located on roadside
Tire Carrier: 3/8” 6061-T6 structural aluminum standard mount
Tire Carrier Location: Placed on roadside of the unit
______________________________________________________________________________________
SUSPENSIÓN
Air Suspension
Capacity 30,000 lbs
Wheels (8) 22.5” aluminum
Tires (8) All Position Tires 11r22.5”
Mud Flaps Pair of Truxton plastic mud flaps installed on rear fenders
______________________________________________________________________________________
BRAKE SYSTEM
Brake Roll Stability/Anti- lock N/A
ABS System 2S/1M FMVSS-121 specifications
Phillips aluminum emergency and service sockets installed on front and rear of unit
______________________________________________________________________________________
CHARGE AND DISCHARGE VALVE
Butterfly valve: 4” at rear connected to sump, suction charge
Ball valve:1/2” installed at the bottom of the outlet pipes, drain
Relief: 1 ½” Vacuum valve 22inHg
2” 15 PSIG relief valve on top front of unit
Discharge tube : 6” ø. In Stainless Steel
Discharge Location: Rear of unit
______________________________________________________________________________________
WALKWAY AND LADDER
Center: 1/8” diamond-type anti-slip sheet 3003 H22
Protection: 3” ø SHC-40 tube in 6061 T-6 aluminum
Full length walkway with handrails
______________________________________________________________________________________
TOOL BOX
Tool Box: One (1) on driver's side Made of aluminum 26” x 20” x 26”
______________________________________________________________________________________
PRESSURE AND VACUUM SYSTEM
Shut off Primary: Pot in stainless steel with aluminum neck on the rear lid
Shut off Secondary: Pot from 12 to 14 Gal. in carbon steel,
Location: Upper front pilot side
______________________________________________________________________________________
PUMP
Pump : Challenger 607 PRO vacuum pump
Couplers: 1” female hydraulic quick connection
1” male hydraulic quick disconnection
Hydraulic Motor: 1250 rev. For Challenger 607 pro vacuum pump
______________________________________________________________________________________
ACCESSORIES
Decals: Safety decals
Conspicuity Tape : Throughout the unit marking and compliance with FMVSS/CMVSS 108 DOT Code- C2 section (49.571.108)
Placards: According to DOT 178.345-15
Paint : High solids epoxy primer and polyurethane finish paint on the skate and carbon steel
areas in 6.5 mils. thickness
Lining: High solids epoxy interior coating
Fire Extinguisher: 3/16” thick aluminum 5454 H-32
Warranty: 3 years in body and structural parts
Test: Hydrostatic §178.346-5 (B1).
Pneumatic §178.346-5 (B2).
Certified leak test
